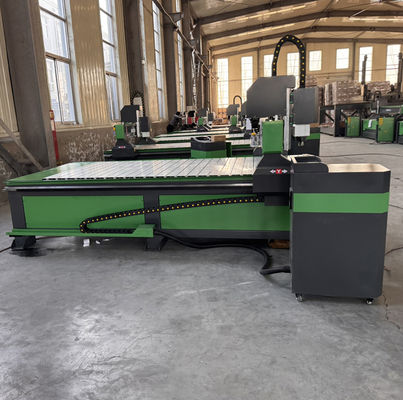

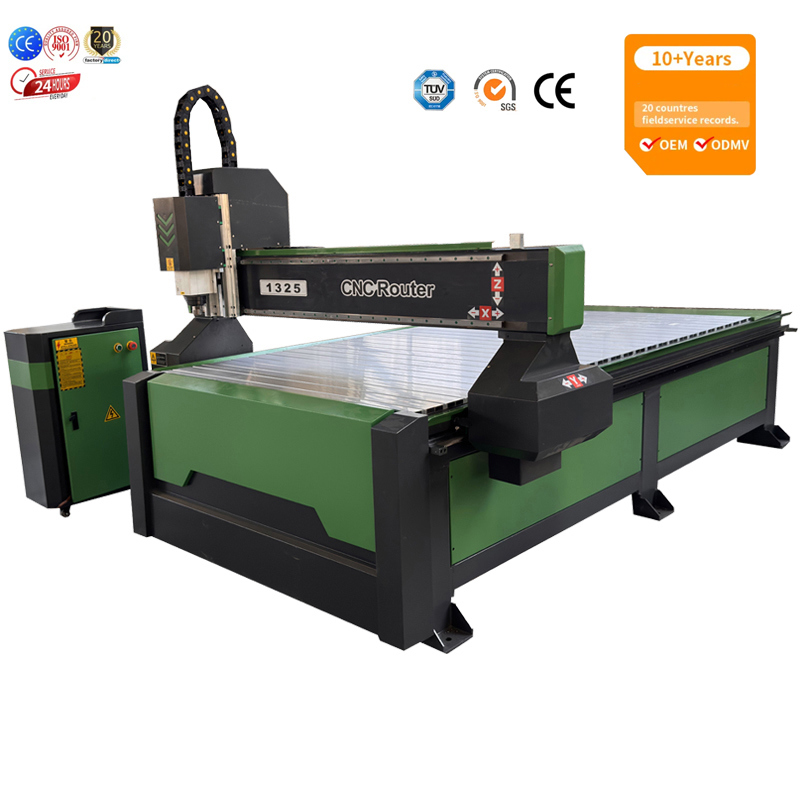

| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2400 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |
| Component | Specification |
|---|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |

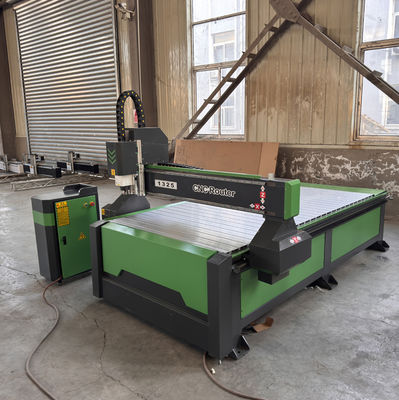

Structural Framework
Bed Body: Fabricated from square steel tubes, featuring a detachable design for flexibility and durability.Gantry Structure: Utilizes a thickened square steel gantry with cast iron columns, ensuring excellent overall rigidity, smooth operation, and high machine accuracy. The gantry steel is 1cm thick and has undergone heat treatment.
Machine Body (LxWxH): 3100 x 2000 x 1750 mm
Table Size (LxW): 1300 x 2500 mm
Effective Working Area (X, Y): 1.3 x 2.5 m (Standard board size)
Operating System: JM Weihong (Hongwei) CNC control system.
Control Cabinet: Independent, standalone chassis control cabinet.
Electrical Components: Key components from Schneider Electric (France), offering strong impact resistance, anti-interference, moisture-proofing, and overall stability for reliable long-term operation.

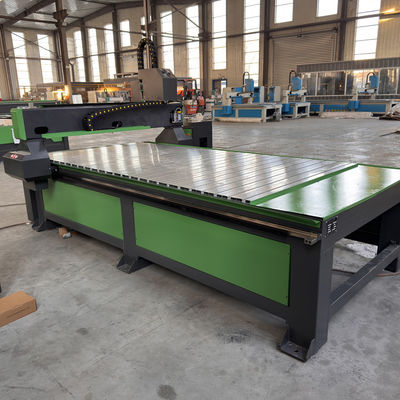

Working Voltage: 380V / 220V, 50Hz.Table Structure: Comprises an aluminum profile base with a PVC surface. This combination provides stable load-bearing capacity while the PVC layer protects the aluminum profiles from damage.
Precision & Drive System
Machining Accuracy: ±0.05 mm
Transmission Structure: All three axes (X, Y, Z) use 20-series square linear guide rails and sliders.
Rack and Pinion: Features 1.25 module high-precision gear racks for the X and Y axes.
Z-Axis Drive: Employs a combination of drive belt and gear transmission.
Automatic Lubrication: Equipped with an automatic oil injection system that lubricates the slider, screw, and guide rails at regular intervals, extending component service life.
Cable Management: Uses a new, wear-resistant drag chain. Signal and power lines are separated by specification to defend against signal interference and prevent cable entanglement.
Motor & Spindle System
Motor Set: Chuangwei 450B stepper motors for reliable motion control.
Drivers: Skyworth 860 drives to power the stepper motors.
Spindle: 6.0 KW air-cooled spindle, capable of speeds up to 24,000 RPM, designed for long-term operation with high speed and low noise.
Frequency Converter: Zhuzhou 7.5 KW frequency converter for precise spindle control.
