| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2600 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |
The BHM1325M is a high-precision industrial CNC router designed for versatile and efficient material processing. It features a sturdy and detachable square-tube welded bed with a reinforced gantry structure made from thickened square steel and cast iron columns, ensuring stability during operation. Equipped with a powerful 6.0KW air-cooled spindle running at 24,000 RPM, the machine delivers smooth and accurate cuts with a machining accuracy of ±0.05mm. The worktable measures 1300×2500mm and is constructed with aluminum profiles and a protective PVC surface. The machine operates on the JM Weihong control system and supports both 380V and 220V power inputs.
| Component | Specification |
|---|---|
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Motor set | Chuangwei 450B stepper motor |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Working voltage | 380/220V 50Hz |
Special reminder: Different customers can customize models and configurations according to their needs. Due to product variety, orders require prepayment. We provide quotations based on customer requirements. Please confirm actual pricing with our staff according to product model configuration.
Robust and Stable Structure: The detachable square-tube welded frame, thickened steel gantry, and cast iron columns provide exceptional rigidity and vibration resistance.
High-Precision Performance: Achieves machining accuracy of 0.05mm through high-quality transmission components, including 20-square linear guides and 1.25m high-precision rack-and-pinion systems.
Powerful Spindle System: A 6.0KW air-cooled spindle with a speed of 24,000 RPM ensures efficient cutting across various materials.
Reliable Electrical and Drive Components: Utilizes Schneider Electric components, Chuangwei 450B stepper motors, and Skyworth 860 drives for consistent and stable operation.
User-Friendly Maintenance: Features an automatic oil injection system for continuous lubrication and wear-resistant drag chains to organize and protect cables.
Versatile and Durable Worktable: The aluminum profile and PVC tabletop offers stable load-bearing capacity and protection against wear.

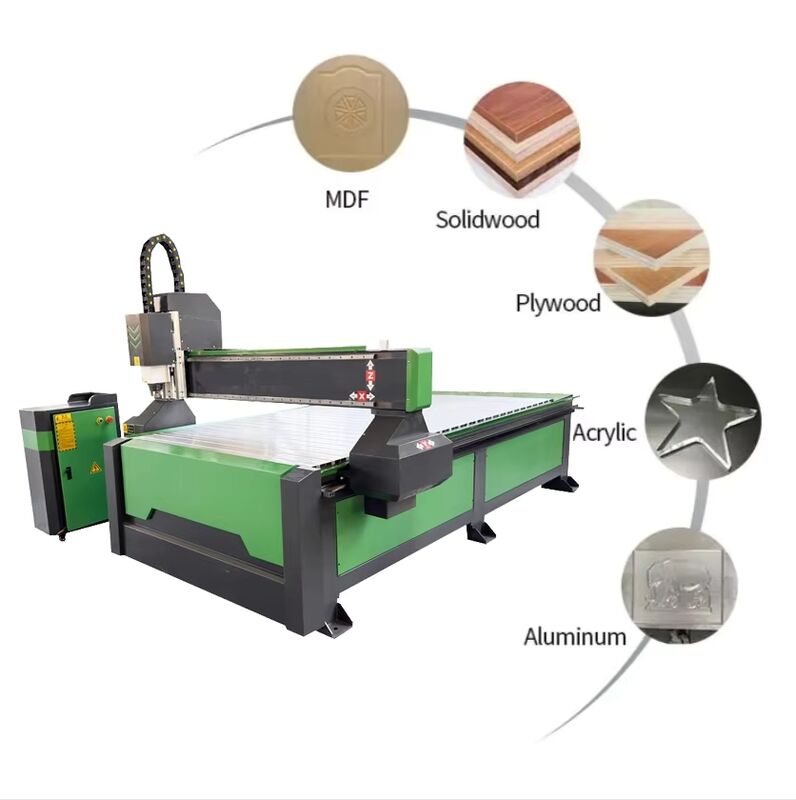

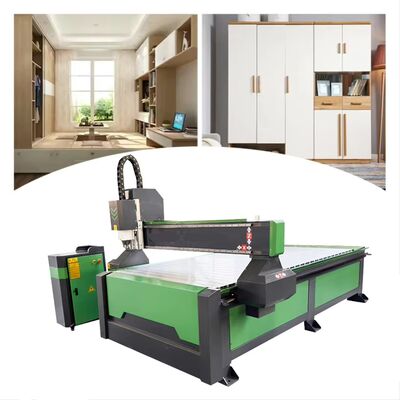

The BHM1325M CNC Router is suitable for a wide range of industrial and creative applications, including:
Woodworking and furniture manufacturing (cutting, carving, and milling)
Signage and advertising material processing (acrylic, PVC, foam, etc.)
Cabinet and door panel production with intricate designs
Light metal and composite material engraving (aluminum, brass, plastic)
Prototyping, model making, and custom part fabrication
Educational and vocational training in CNC machining and digital fabrication
A1: Yes, we can customize the color, size and logo you need.
A2: We are a Chinese manufacturer in Qingdao city, Shandong province.
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.
A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.
A6: Our sales team is available 24/7. We also provide overseas installation services.
A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
