| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2600 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

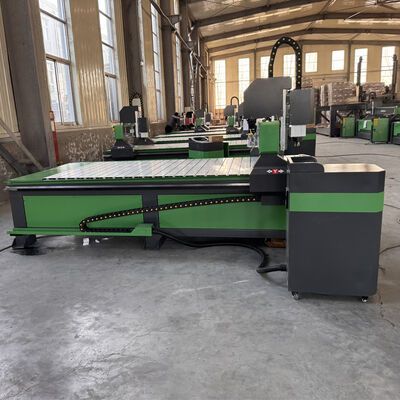

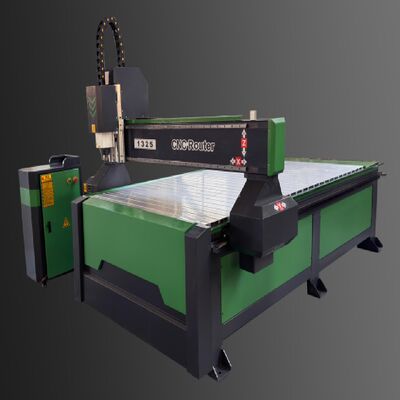

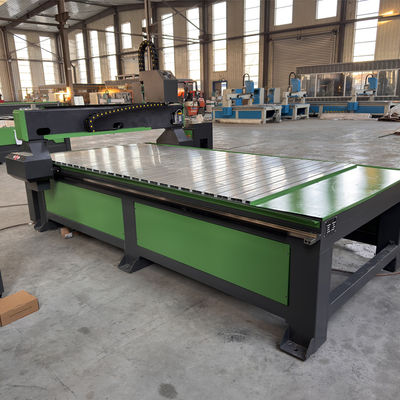

The BHM1325M CNC Router is an industrial-grade digital engraving system engineered for high-efficiency precision machining. Featuring a modular square-tube welded frame and a split-design gantry structure, it measures 3100×2000×1750mm with a large-format worktable of 1300×2500mm, providing an effective working range of 1.3×2.5m for standard panel processing. Equipped with a 6.0kW high-performance air-cooled spindle capable of speeds up to 24,000 RPM, the machine integrates a three-axis precision rack-and-pinion drive system and 20-series square linear guides, achieving positioning accuracy within ±0.05mm. The intelligent control system runs on the JM Weihong operating platform, complemented by Schneider industrial-grade electrical components, an automatic lubrication system, and protected cable carriers, ensuring consistent reliability during continuous operation.
| Component | Specification |
|---|---|
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Motor set | Chuangwei 450B stepper motor |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Working voltage | 380/220V 50Hz |
Special reminder: Different customers can customize models and configurations according to their needs. Due to product variety, orders require prepayment. We provide quotations based on customer requirements. Please confirm actual pricing with our staff according to product model configuration.
1.Reinforced Structural Design
The gantry utilizes a heat-treated, thickened square steel beam and cast iron column assembly, optimized through finite element analysis to increase dynamic rigidity by 40% and effectively suppress machining vibration.
2.Intelligent Drive System
Features Chuangwei 450B series stepper motors paired with high-precision gear racks and a Zhuzhou 7.5kW frequency converter, enabling stepless speed regulation from 0 to 24 m/min and rapid traverse speeds up to 48 m/min.
3.Professional Worktable Design
An innovative aluminum profile base with longitudinally laid PVC protective surface offers a load capacity of 800kg/m², combining wear resistance with workpiece protection.
4.Industrial-Grade Electrical Configuration
Full system equipped with Schneider contactors, relays, and circuit breakers. The independently cooled control cabinet supports stable operation across a wide temperature range of -10°C to 50°C.
5.Smart Maintenance System
Integrated timed and metered automatic oil injection system with wear-resistant, signal-separated cable carriers extends the service life of key components by over 30%.
This machine is widely suitable for:
• Architectural Decoration: Aluminum panel engraving, GRG component processing, decorative trim production
• Furniture Manufacturing: Solid wood relief carving, custom-shaped panel processing, substrate cutting for upholstered furniture
• Signage & Advertising: 3D letter engraving, lightbox panel fabrication, display fixture production
• Craft & Gift Products: Cultural creative item engraving, customized gifts, mold prototype development
• Composite Material Processing: Carbon fiber sheet cutting, FRP edge trimming, insulating material shaping
A1: Yes, we can customize the color, size and logo you need.
A2: We are a Chinese manufacturer in Qingdao city, Shandong province.
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.
A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.
A6: Our sales team is available 24/7. We also provide overseas installation services.
A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
