CNC Automatic Edge Banding Machine High Efficiency For Furniture Manufacturing With PUR

CNC Automatic Edge Banding Machine High Efficiency For Furniture Manufacturing With PUR

Brand Name:	BH
Model Number:	468-PUY
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Edge Thickness:

10-60MM

Speed:

18~24m/min

Voltage:

380V

Power:

17.9KW

Weight:

2600kg

Working Pressure:

0.7MPa

Packaging Details:

6700*1000*1700mm

Highlight:

CNC automatic edge banding machine with PUR

high efficiency edge banding machine for furniture

automatic edge banding machine with warranty

Product Description

 CNC Automatic Edge Banding Machine High Efficiency For Furniture Manufacturing With PUR
Product  Introduction

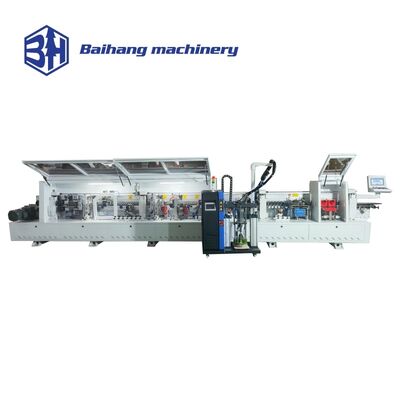

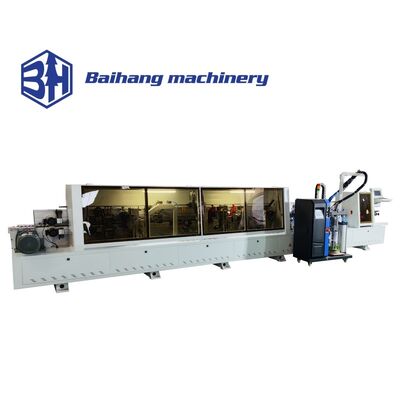

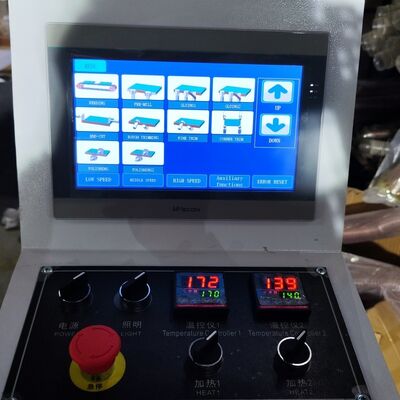

This fully automatic edge banding machine is an intelligent, high-precision solution engineered for modern panel furniture manufacturing. It integrates a complete sequence of edge banding processes into a single, continuous workflow, designed to handle wood-based panels such as particleboard, MDF, plywood, and laminated boards with exceptional consistency. The machine features a heavy-duty, welded steel frame that ensures minimal vibration during high-speed operation, paired with a modular structure that allows for easy maintenance and future upgrades. Its advanced control system, powered by a 7-inch touchscreen HMI, provides real-time process monitoring, parameter adjustment, and fault diagnosis, ensuring operational transparency and reducing downtime. The unit is equipped with safety features including emergency stop buttons, protective covers, and sensor-based obstacle detection, making it compliant with global industrial safety standards.

Parameter

Outline dimension

6600*900*1600mm

Conveyorspeed

18~24m/min

Machine weight

2600kg

Minimum width of board

50mm

Working voltage

380V/50Hz

Minimum length of board

70mm

Total power

17.9kW

Working pressure

0.7MPa

Plate thickness

10~60mm

Edge banding thickness

0.3~3mm

Advantages
Unmatched Precision & Consistency: The machine is equipped with servo-driven feeding systems and precision linear guides, achieving a positioning accuracy of ±0.02mm. This ensures that edge banding materials (including PVC, ABS, melamine, and solid wood veneer) are applied with seamless alignment, eliminating gaps and unevenness that compromise product quality.
High Efficiency for Mass Production: With a processing speed of up to 28 meters per minute, this machine significantly outperforms semi-automatic alternatives. Its fully automated workflow—from feeding to trimming and polishing—eliminates the need for manual intervention between steps, reducing labor costs and increasing overall production capacity by 30-40% compared to traditional setups.
Versatility in Material Handling: The machine accommodates edge banding tapes ranging from 0.4mm to 3mm in thickness and 12mm to 60mm in width, as well as panel sizes from 120mm × 120mm to 3000mm × 1300mm. Quick-change tooling and adjustable pressure rollers allow for rapid switching between different panel and edge materials, making it ideal for both large-scale production and custom-order manufacturing.
Intelligent Operation & Maintenance: The integrated PLC system stores up to 100 sets of processing parameters, enabling one-click recall for recurring production tasks. Self-diagnostic tools alert operators to potential issues such as adhesive shortages or tool wear, while the modular design allows for component replacement in under 20 minutes, minimizing production interruptions.
Eco-Friendly Performance: The machine incorporates a low-VOC hot melt adhesive system and a high-efficiency dust extraction system that captures over 95% of wood dust and debris. This not only ensures a cleaner working environment but also reduces material waste by optimizing adhesive application and trimming precision.

Functions

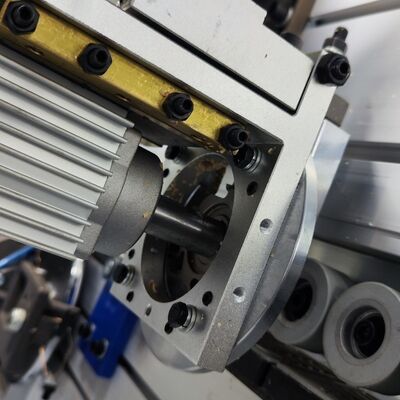

Pre-Milling: A two-stage pre-milling unit trims panel edges to a uniform, smooth surface, removing any imperfections from cutting and ensuring optimal adhesion of the edge banding tape.
Gluing: A precision glue application system with a temperature-controlled adhesive tank (operating at 160-220°C) delivers a consistent, thin layer of hot melt adhesive to both the panel and edge tape, ensuring strong bonding while minimizing glue consumption.
End Cutting: Servo-driven end cutters trim the edge banding tape to match the exact length of the panel, with a cutting accuracy of ±0.1mm.
Rough & Fine Trimming: A combination of rough trimming knives and fine trimming blades removes excess edge material from the top and bottom of the panel, creating a flush finish that requires no additional manual sanding.
Corner Rounding: A dedicated corner rounding unit applies a smooth, uniform radius to panel corners, enhancing both aesthetic appeal and user safety by eliminating sharp edges.
Scraping & Buffing: A multi-stage scraping system removes residual adhesive and fine imperfections, followed by a buffing unit that polishes the edge to a smooth, professional finish.
Slotting (Optional): An optional slotting module can be integrated to create grooves for handles or mounting hardware, adding additional functionality for cabinet and furniture production.

Applications
This edge banding machine is a staple in industries requiring high-quality panel processing, including:
Furniture Manufacturing: Ideal for producing kitchen cabinets, wardrobes, office desks, and retail display units, where seamless edge finishes are critical to product durability and aesthetics.
Interior Decoration: Used for manufacturing wall panels, door frames, and decorative partitions in residential and commercial construction projects.
Custom Woodworking: Supports small to medium-sized workshops in delivering high-precision edge banding for custom furniture and architectural millwork.
Packaging Industry: Applied to reinforce and finish wooden crates, pallets, and specialty packaging solutions that require durable, clean edges.

Shipping & Logistics
The machine is securely packaged in a seaworthy wooden crate, with all vulnerable components protected by shock-absorbing foam and moisture-resistant wrapping. We partner with leading global freight forwarders to provide flexible shipping options, including:
Sea Freight: The standard and most cost-effective option for international deliveries, with a typical lead time of 25-45 days from our factory to major ports worldwide.
Door-to-Door Delivery: We offer comprehensive door-to-door logistics services, handling customs clearance, inland transportation, and final installation at the customer’s facility.

Each shipment includes a detailed installation manual, a full set of spare parts, and a digital copy of the operation and maintenance guide. Our technical support team provides remote assistance for installation and commissioning, with on-site service available upon request.
