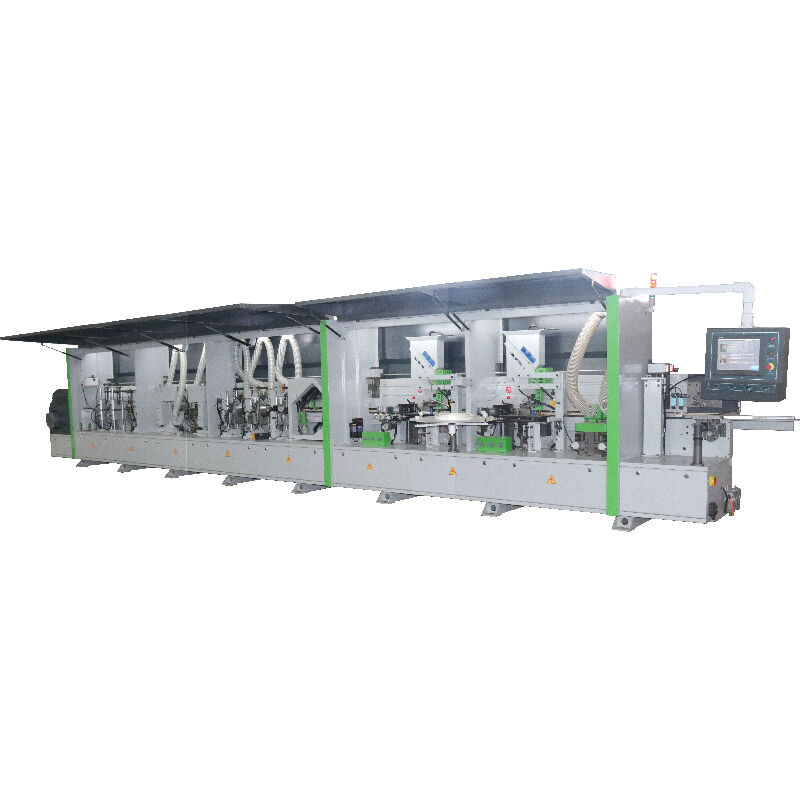

Hot Sale Edge Banding Machine with Double PUR Gluing Buffing Full Function

Hot Sale Edge Banding Machine with Double PUR Gluing Buffing Full Function

Brand Name:	BH
Model Number:	688YJPUR
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Heating Power:

1.8kw

Feeding Motor Power:

3.7kw

Pre-milling Motor Power:

2.2kw*2

Glue Spreading Motor Power:

0.75kw*2

End Trimming Motor Power:

0.5kw*2

Feeding Speed:

10-23m/min

Packaging Details:

9900*1100*1800mm

Highlight:

Automatic edge banding machine with PUR gluing

Double gluing edge banding machine

Full function edge banding machine with buffing

Product Description

 Hot Sale Edge Banding Machine with Double PUR Gluing Buffing Full Function
Product Features of Edge Banding Machine
For furniture manufacturers and woodworking businesses aiming to scale operations and elevate product quality, this fully automatic edge banding machine is a strategic investment that delivers measurable returns. Designed to balance speed, precision, and flexibility, it eliminates the inefficiencies of manual or semi-automatic systems, ensuring that every panel leaving your facility meets the highest industry standards. The machine’s user-friendly interface and modular design minimize training time and maintenance costs, while its robust construction ensures reliable performance even in the most demanding production environments. Whether you are expanding your product line, optimizing for high-volume orders, or enhancing your brand’s reputation for quality, this edge banding machine is engineered to drive growth and profitability.

Parameter

Band tape thickness

0.4-3mm

Band tape width

12-65mm

Workpiece thickness

10-60mm

Workpiece length

>=100mm

Workpiece width

>=50mm

Heating power

1.8kw

Feeding motor power

3.7kw

Pre-milling motor power

2.2kw*2

Glue spreading motor power

0.75kw*2

End trimming motor power

0.5kw*2

Rough trimming motor power

0.75kw*2

Fine trimming motor power

0.75kw*2

Corner rounding motor power

0.5kw*2

Polishing motor power

0.37kw*2

Feeding speed

10-23m/min

Air pressure

0.8Mpa

Net weight

3800kg

Machine size

9800*1000*1700mm

Advantages

Rapid ROI & Profitability: By automating the entire edge banding process, the machine reduces labor costs by up to 60% compared to manual operations. Its high throughput and consistent quality also cut rework and material waste by 20-25%, resulting in an estimated 12-18 month payback period for mid-sized manufacturers.
Operator-Friendly Design: The intuitive touchscreen interface requires minimal training, allowing operators to master the machine in just a few hours. Pre-programmed settings for common tasks reduce changeover time to under 10 minutes, increasing overall equipment effectiveness (OEE) and maximizing production uptime.
Future-Proof Flexibility: The machine’s modular architecture supports easy upgrades, such as adding a slotting unit or advanced dust extraction system, ensuring it adapts to evolving production needs and market trends. Its ability to handle a wide range of edge materials and panel sizes also enables businesses to diversify their product offerings without additional capital expenditure.
Unrivaled After-Sales Support: We offer a 18-month warranty on all parts, backed by a global network of certified service technicians. Our team provides proactive maintenance alerts, 24/7 online troubleshooting, and on-site repairs, ensuring minimal downtime and maximum productivity.
Brand Enhancement: By delivering a flawless, factory-perfect finish on every panel, this machine helps businesses build a reputation for quality and reliability, attracting premium clients and increasing customer retention rates.

Functions

Pre-Milling & Edge Calibrating: A dual-stage pre-milling unit trims panel edges to a uniform, micro-smooth surface, removing saw marks and imperfections to ensure optimal adhesion.
Precision Gluing: A temperature-controlled glue tank (150-230°C) delivers a consistent, thin layer of hot melt adhesive to both the panel and edge tape, with automatic glue level monitoring to prevent interruptions.
End Cutting & Seam Trimming: Servo-driven end cutters trim the edge tape to match the exact panel length, while a seam trimming unit removes excess material for a flush, seamless joint.
Rough & Fine Trimming: High-speed carbide knives remove excess edge material from the top and bottom, with adjustable height settings to accommodate varying panel thicknesses, achieving a precision finish that requires no manual sanding.
Corner Rounding & Profiling: A multi-axis corner rounding unit applies a smooth, uniform radius to panel corners, with adjustable radius settings from 1mm to 5mm for enhanced safety and aesthetics.
Scraping, Buffing & Cleaning: A multi-stage scraping system removes residual adhesive, followed by a dual-head buffing unit that polishes the edge to a professional finish. An integrated air blower system cleans panels and components to maintain consistent quality.
Optional Slotting & Drilling: An integrated slotting module can be added to create grooves for handles or mounting hardware, while a drilling unit supports pre-installation of fixtures, eliminating secondary processing steps.

Applications
This edge banding machine is designed to support businesses across the woodworking ecosystem, including:
Mid-to-Large Furniture Factories: Streamlines high-volume production of standardized furniture components, reducing lead times and ensuring consistent quality for bulk orders.
Custom Cabinetry Shops: Provides the precision and flexibility needed to produce one-of-a-kind cabinetry for residential and commercial projects, where attention to detail is critical.
Retail Display Manufacturers: Creates durable, attractive edges for store fixtures, shelves, and point-of-purchase displays that withstand heavy use in retail environments.
Modular Construction Firms: Supports the production of prefabricated wall panels and modular furniture for fast-track construction projects, ensuring quality and efficiency.

Shipping & Logistics
We understand that timely delivery and seamless installation are critical to your operations, which is why we offer a comprehensive logistics solution tailored to your needs:

Packaging: The machine is shipped fully assembled on a reinforced wooden pallet, with all moving parts secured and electronic components protected against moisture and impact.
Shipping Options:
Standard Ocean Freight: Our preferred method for most international orders, offering the best balance of cost and reliability. We handle all documentation and customs clearance to ensure a smooth delivery.
Local Delivery: For domestic customers, we offer direct truck delivery with professional installation and operator training included.

Installation & Training: Our technical team provides on-site installation, calibration, and hands-on training to ensure your team can operate the machine efficiently. We also offer ongoing training sessions to maximize productivity and extend the machine’s lifespan.

If you need, I can also create a concise 1-page English sales flyer that distills this information for trade shows or client pitches. Would you like me to put that together?
