| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2400 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

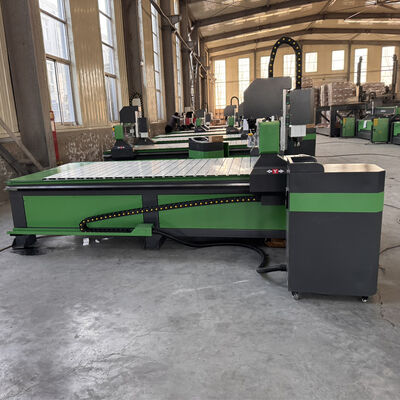

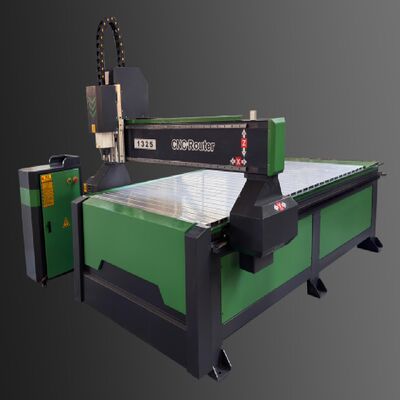

A Foundation of Rigidity and Reliability
At its core, the BHM1325M features a robust, heat-treated square steel gantry. This construction provides exceptional overall rigidity, ensuring minimal vibration during high-speed or heavy-duty cutting operations. The result is smoother machine movement and sustained high precision over its entire working life, forming the solid backbone essential for consistent, high-quality output.
Premium Components for Trusted Performance
Every critical subsystem is specified for durability and reliability. The machine is powered by a high-performance spindle system, engineered for smooth, long-duration operation with minimal thermal growth and noise. The driving system utilizes reliable stepper motors for precise motion control. Importantly, the electrical cabinet is outfitted with Schneider Electric components, renowned for their impact resistance, stability, and resistance to interference, guaranteeing uninterrupted processing cycles.
Intelligent Design for Enhanced Usability and Longevity

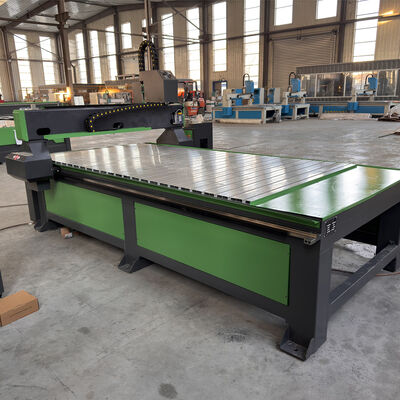

Thoughtful engineering details minimize maintenance and maximize uptime. An automatic centralized lubrication system periodically oils the guide rails, ball screws, and sliders, significantly extending the life of these critical wear components. The integrated cable management employs a wear-resistant drag chain that neatly separates power and signal lines, preventing interference and protecting cables from damage. The large aluminum-profile workbed, overlaid with a protective PVC surface, offers both exceptional load-bearing capacity and a durable, easy-to-maintain cutting surface.
| Component | Specification |
|---|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
