| Brand Name: | BH |
| Model Number: | 1330A |
| MOQ: | 1 |
| Price: | $5000 - $8000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |
Product Overview

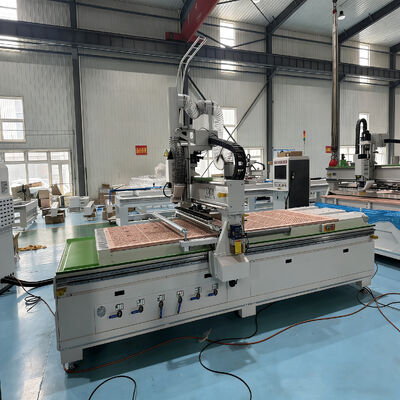

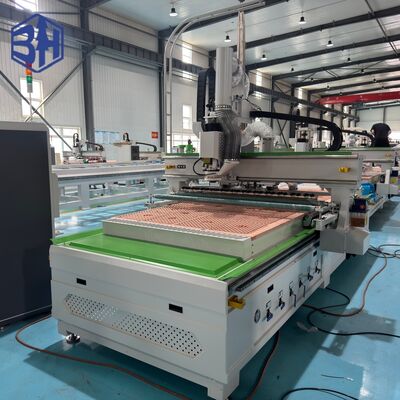

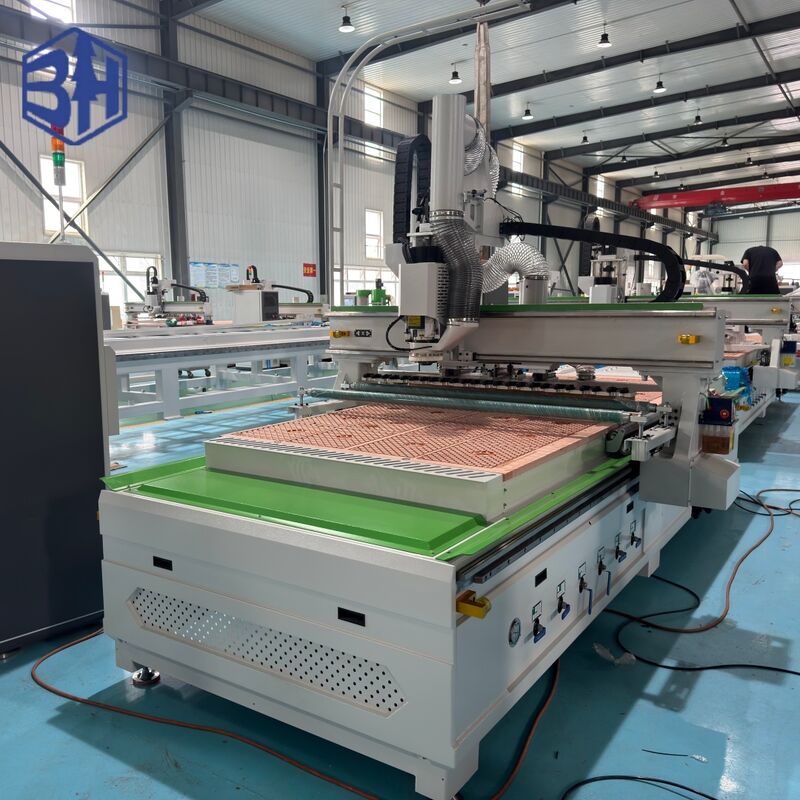

The 1330A Linear Tool Changer + Press Roller Machining Center is a high-performance CNC machine that integrates door panel processing and cabinet body cutting functions, designed for the custom furniture, panel furniture, and decorative building materials industries. With overall dimensions of 4300×2000×2100mm, it offers a maximum processing size of 3050×1220×18mm, a rapid traverse speed of 60m/min, and a working speed of 20m/min. Equipped with a 9kW high-power automatic tool-changing spindle with a speed range of 18,000-24,000 rpm and a linear 12-tool magazine, it meets the rapid tool change requirements for complex processes. The machine features the Taiwanese LNC CNC system, a zoned vacuum adsorption table, and a patented dual press roller system, ensuring precise positioning and surface flatness during processing. The frame adopts a welded truss structure, undergoes vibration stress relief and tempering treatments, and is precision-machined using a five-face machining center, guaranteeing stability and long-term accuracy under heavy cutting loads.
| Component | Specification |
|---|---|
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220*18mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Product Advantages
Multi-Function Combined Processing Capability: Integrates door panel engraving and cabinet body cutting functions in one machine, significantly improving equipment utilization and production flexibility.
Efficient Automatic Tool Changing System: The 12-tool linear magazine supports continuous multi-process machining, featuring fast tool changes and precise positioning, greatly enhancing production efficiency.
High-Rigidity Structural Design: The frame adopts welded truss construction with vibration stress relief and tempering treatments to eliminate internal stress; the beam and guide rail surfaces are precision-machined using a five-face machining center, ensuring stability and long-term accuracy under heavy cutting conditions.
Intelligent Control System: The Taiwanese LNC CNC system features a user-friendly interface and supports intelligent functions such as rapid plunge cutting, batch processing by form sorting, and rear-start operation, simplifying workflows and improving production efficiency.
Efficient Adsorption and Clamping System: The zoned vacuum adsorption table combined with an 11kW high-power vacuum pump provides strong suction to prevent workpiece shifting; the patented dual press roller system applies even pressure to ensure no displacement and surface flatness during processing.
High-Quality Core Components:
Transmission System: Japan Shinano Kogyo reducer, Taiwanese 25mm steel belt guides, 1.5-module high-wear-resistance P&C rack
Electrical System: Schneider electrical components, Taiwanese Fuling inverter, Hengtong high-flex shielded drag chain cables
Functional Modules: Centralized lubrication system, following-path air blowing device, layered and separated cable drag chain, centralized solenoid valve layout
Efficient Dust Removal System: The patented dust collection hood combined with the following-path air blowing device achieves efficient dust extraction, supporting dust-free cutting and improving the working environment.
Product Applications
Whole-House Custom Furniture Production: Suitable for efficient processing of cabinet body cutting (wardrobes, kitchen cabinets, tatami) and complex door panel techniques such as engraving, grooving, and hollowing.
Batch Panel Furniture Manufacturing: Capable of efficiently performing cutting, drilling, and milling operations, applicable to batch production of office furniture, hotel furniture, children's furniture, and more.
Decorative Building Materials and Display Fixture Processing: Used for custom-shaped cutting and fine surface engraving of wall panels, feature walls, commercial display cabinets, and display racks.
Wooden Door and Solid Wood Customization Fields: Supports milling, engraving, and hole processing for products such as door leaves, door frames, and decorative moldings.
Small to Medium-Sized Furniture Processing Centers: Meets flexible production needs for multi-variety, small-batch, high-complexity orders, enabling diverse processing tasks to be completed on a single machine.
