| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |

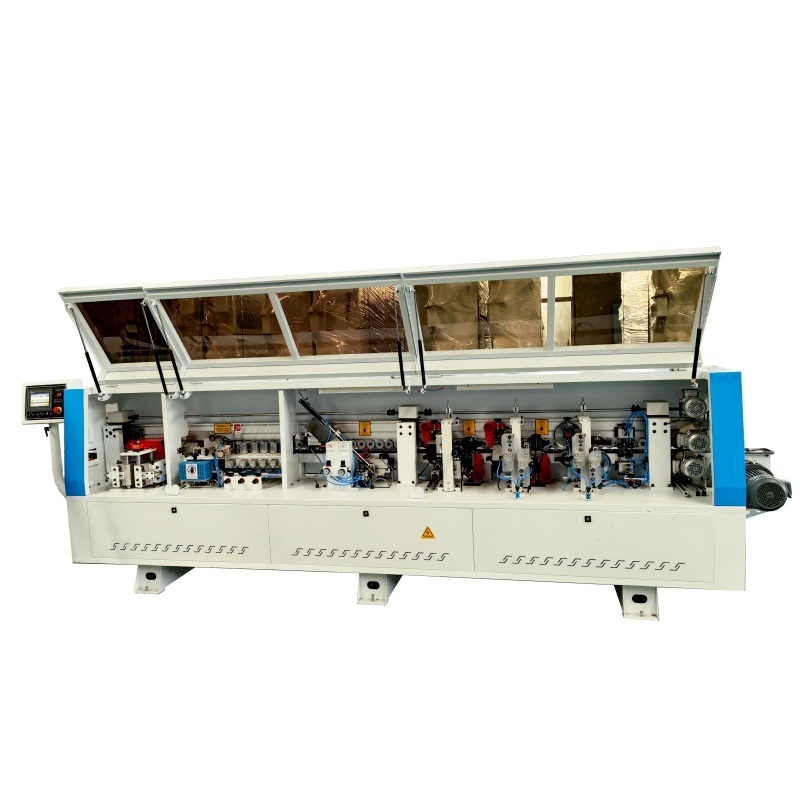

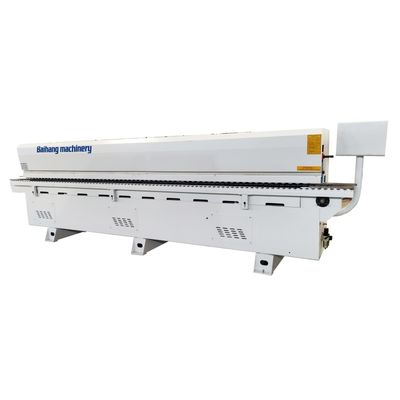

BHM388Y MDF PVC Wood Automatic Edge Banding Machine
The BHM388Y is an advanced, heavy-duty fully automatic edge banding machine developed by 3A Baihang Machinery to meet the demanding requirements of high-volume panel processing. This model incorporates multiple precision processing stations to deliver superior edge finishing quality for a diverse range of materials, including veneer, PVC, and acrylic. Engineered for durability and precision, the BHM388Y represents the ideal solution for manufacturers seeking to elevate their edge banding capabilities with professional-grade equipment.
Specification
Functions and Performance Overview
This machine is primarily used for trimming and shaping the edges of furniture panels after the edge banding tape is applied. It performs single-side trimming and profiling operations with great precision, automatically adapting to the contour of the panel surface. The trimming unit uses high-speed motors and durable blades to remove excess edge material efficiently, ensuring smooth transitions and flawless edges without damaging the workpiece surface.
The profiling tracking system continuously monitors the workpiece outline, automatically adjusting the trimming angle and position. This guarantees uniform cutting depth and consistency throughout the process, even on irregular or curved edges. The machine supports a wide range of edge banding materials, including PVC, ABS, veneer, and wood strips, making it highly adaptable to different furniture styles and materials.
Advanced Processing Units
1. Precision Control System

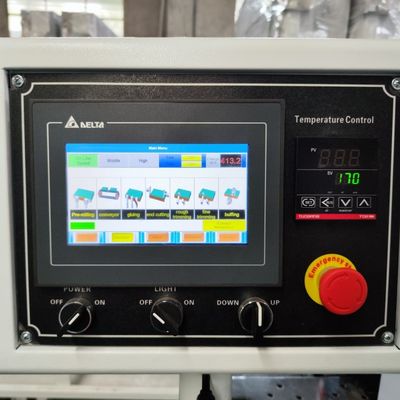

The machine utilizes a high-sensitivity encoder to govern all operational movements, ensuring rapid response and exceptional reliability. Combined with a standard PLC microcomputer control system operating on time-based principles, the BHM388Y achieves outstanding operational stability while minimizing the risk of mechanical failures.

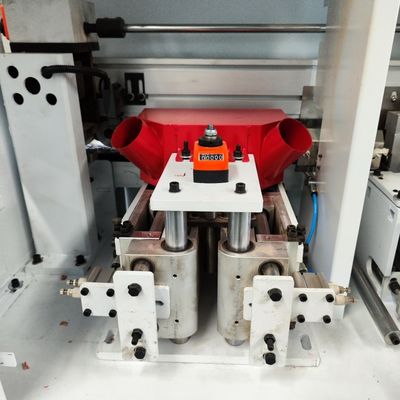

2. Pre-Milling Unit
Equipped with dual milling cutters, this critical first step prepares the panel substrate by removing grain marks, burrs, or non-perpendicular edges. This preparation ensures perfect surface contact between the panel and edge banding material, resulting in superior adhesion and a flawless finished appearance.

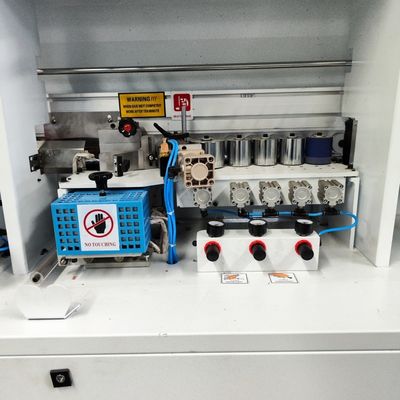

3. Efficient Glue Application System
The precision-engineered glue tank heats hot melt adhesive to optimal temperatures while the spiral application mechanism ensures uniform coverage across the entire panel edge. This consistent glue distribution guarantees strong, long-lasting adhesive force that prevents edge lifting even under demanding conditions.
4. End Cutting Station
Featuring a stable single-guide rail system, this unit accurately cuts excess edge material flush with both panel ends, producing clean, square corners ready for subsequent finishing operations.

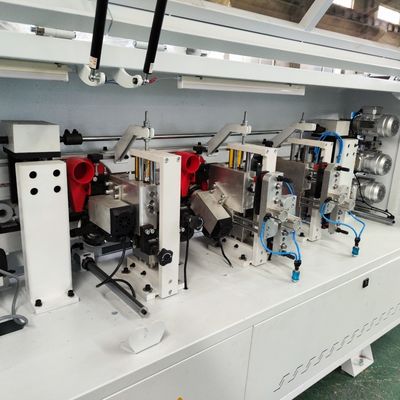

5. Rough Trimming Unit
This versatile station serves dual purposes: it prevents veneer breakage during the sealing process and functions as the initial leveling stage for PVC and acrylic materials. By performing preliminary material removal, it significantly reduces the cutting load on precision finishing tools, extending their service life while maintaining cutting quality.
6. Fine Trimming Unit
The high-speed oblique cutting motor with adjustable operation angles enables precise control over the trimming process. Precision alloy discs deliver exceptionally smooth, even cuts that create seamless transitions between the panel surface and edge material.
7. Scraping and Flat Scraping Stations
The dual scraping configuration provides comprehensive surface refinement. The primary scraping unit eliminates ripple marks and irregularities caused by non-linear cutting processes, ensuring smooth upper and lower edge surfaces. The additional flat scraping station performs a secondary, gentler pass that further perfects the edge finish for superior visual and tactile quality.
8. Final Buffing Station
The concluding processing stage polishes the sealed edge section to achieve a smooth, lustrous finish that enhances the overall appearance of finished panels and prepares them for immediate use or packaging.
Advantages
With its extended processing line and additional finishing stations, the BHM388Y delivers professional-grade results ideal for high-end furniture production. The comprehensive processing sequence—from pre-milling through dual scraping—ensures exceptional edge quality while the powerful 13.5kW motor configuration maintains consistent performance throughout extended production runs. This machine represents a significant upgrade for operations requiring superior finish quality across diverse materials and panel types.
