BHM1325M Versatile CNC Engraving Machine for Wood and Acrylic Processing

BHM1325M Versatile CNC Engraving Machine for Wood and Acrylic Processing

Brand Name:	BaiHang
Model Number:	BH1325M
MOQ:	1
Price:	$2000 - $2400
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao ,China

Certification:

Document:

BHM1325M.pdf

Product Name:

CNC Wood MDF Furniture Carving CNC Router Woodworking Machine

Place Of Origin:

Shandong, China

Brand Name:

Application:

Kitchen Cabinet Doors Furnitures Making

Keywords:

CNC Wood MDF Furniture Carving CNC Router

Key Selling Points:

Easy To Operate,High-accuracy

Cabinet:

Furniture, Doors And Cabinets Industry

Packaging Details:

3310*2250*1030mm

Highlight:

CNC engraving machine for wood

versatile CNC router for acrylic

BHM1325M CNC engraving machine

Product Description

BHM1325M Versatile CNC Engraving Machine for Wood and Acrylic Processing

Expand your manufacturing capabilities with the BHM1325M CNC Router from Baihang Machinery. Built to handle diverse applications ranging from cabinet door production to signage carving, this 1325 model offers a generous working area of 1.3m x 2.5m. It is an ideal solution for businesses seeking a balance between heavy-duty performance and operational ease, ensuring high-quality outputs on wood, acrylic, and composite materials.

Technical Specifications

Component	Specification
Fuselage structure	Square tube welded bed body, detachable
Longmen structure	Thickened square steel gantry, cast iron columns
Mesa structure	Aluminum profiles+PVC, vertical laying of profiles
Body size	310020001750mm
Table size	1300*2500mm
Effective work schedule	1.3mX2.5m (standard board size)
Machining accuracy	0.05mm
Transmission structure	Three axis 20 square track and slider
Rack	1.25m high-precision gear rack
Z-axis component	Drive belt+gear transmission
Motor set	Chuangwei 450B stepper motor
Driver	Skyworth 860 Drive
Spindle power	6.0KW air-cooled spindle, speed 24000 RPM
Frequency converter	Zhuzhou 7.5KW frequency converter
Operating system	JM Weihong
Cabinet	Independent chassis control cabinet
Machine color	Grayish green
Working voltage	380/220V 50Hz

Engineered for Durability and Precision

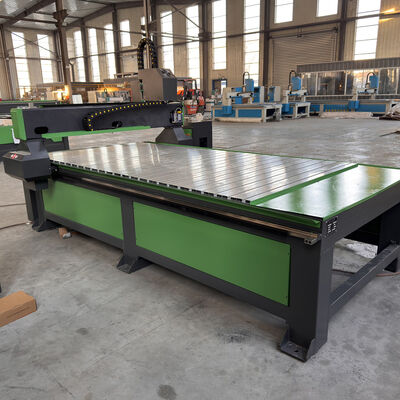

The foundation of the BHM1325M is its detachable welded fuselage structure, designed for easier transportation and installation without sacrificing rigidity. The gantry utilizes thickened square steel that undergoes heat treatment, ensuring the frame remains stable under high-speed movement. Supported by cast iron columns, this setup minimizes shaking during operation. The work surface features aluminum extrusion profiles covered with a PVC protective layer. This combination provides strong load-bearing capacity while preventing damage to the table surface during cutting tasks.

High-Speed Machining Components

At the core of the cutting system is a 6.0KW air-cooled spindle, capable of reaching speeds up to 24,000 RPM. This high-frequency motor ensures smooth finishes on various materials while reducing tool wear. Power management is handled by a Zhuzhou 7.5KW frequency converter. Motion control is delivered through Chuangwei 450B stepper motors paired with Skyworth 860 drivers. The transmission system relies on linear guide rails (20 square track) across all three axes and a 1.25m high-precision gear rack, guaranteeing accurate movement with a machining tolerance of 0.05mm. The Z-axis utilizes a belt and gear drive for stable vertical positioning.

Reliable Control Interface

Operators can manage tasks efficiently using the JM Weihong numeric control system, known for its intuitive interface and stability. All electrical components are housed within an independent chassis control cabinet, keeping wiring organized and accessible. To ensure uninterrupted operation, the machine incorporates French Schneider Electric components. These parts offer superior resistance to interference, moisture, and impact, making the system reliable even in challenging workshop environments. The unit supports dual voltage inputs of 380V or 220V at 50Hz, providing flexibility for different power setups.

Extended Service Life Features

Maintenance is simplified through an automated lubrication mechanism. This system injects oil into the guide rails and screws at set intervals, reducing manual upkeep and preventing premature wear on moving parts. Cable management is handled by a wear-resistant protection chain, where signal and power lines are separated to prevent interference and twisting during motion. The machine comes finished in a standard grayish green coating, resistant to typical workshop conditions.

Key Features

Machine Parts

Brand: BH | Origin: China | Features: long lifespan, low noise, free maintenance

Main Features

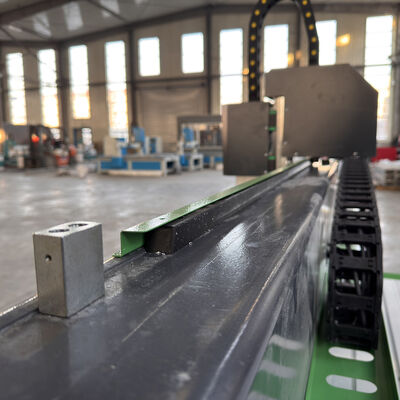

Three-axis 20 square rail and slider | Brand: BH | Origin: China | Features: fast running speed and strong bearing capacity

Machine Parts

Name: T-slot Table | Brand: BH | Origin: China | Features: much more economic

Main Features

Origin: China | Name: independent control cabinet | Features: easy to operate and simple to control

Ready to Upgrade Your Workflow

The BHM1325M combines robust mechanical design with advanced control technology to support consistent production. Whether you are cutting complex shapes or engraving detailed patterns, this machine delivers the reliability needed for professional results.

Contact our team to discuss pricing, shipping options, or technical specifications. Baihang Machinery is dedicated to providing equipment that supports your business growth.

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: This is the first time I use this kind of machine, is it easy to operate?

A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.

Q5: What's your MOQ and delivery?

A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.

Q6: How is your after sales service?

A6: Our sales team is available 24/7. We also provide overseas installation services.

Q7: If my machine is broken, can you repair it for me?

A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
