| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

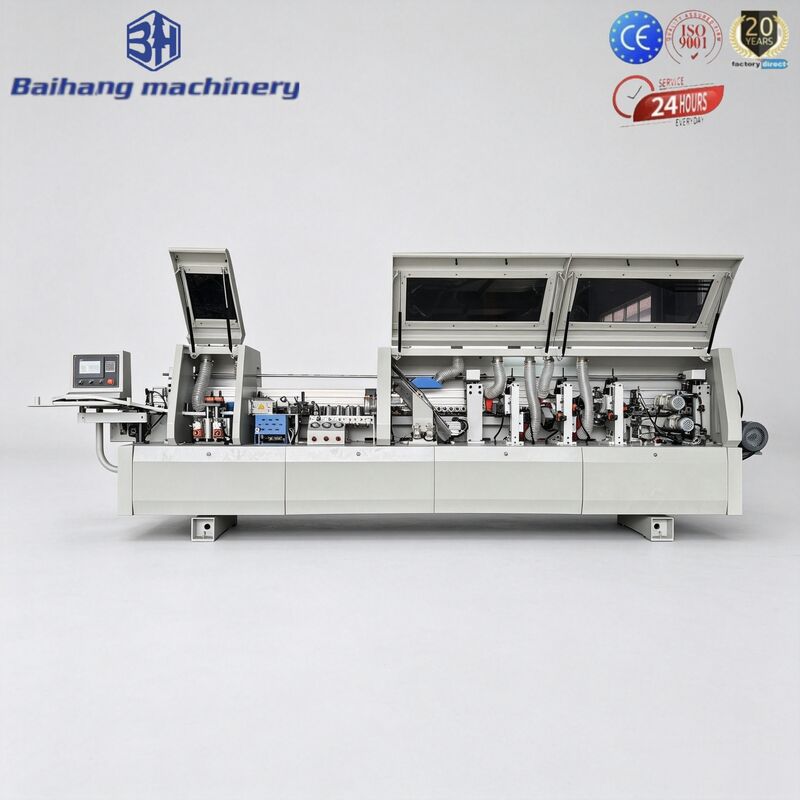

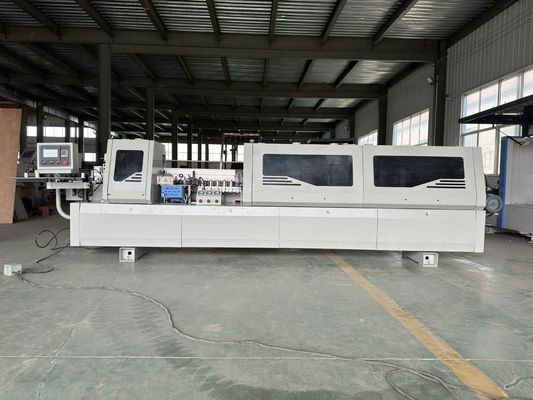

The BHM388Y Edge Banding Machine is a full-featured automatic edge sealer built for mid-to-large-scale woodworking operations that demand consistent output quality and operational reliability. This unit occupies a floor space of 5000×750×1500mm and carries a shipping weight of 1500kg, reflecting its heavy-gauge build. The variable-speed feed system operates between 18 and 24 meters per minute, accommodating workpieces measuring 10–60mm in thickness while using edging strips from 0.3mm to 3mm. The smallest board it can handle is 50mm wide by 70mm long. With a total electrical draw of 13.5kW and an air supply requirement of 0.7MPa, the machine runs on standard 380V/50Hz three-phase power. A combination of encoder-based motion control and PLC-driven timing logic manages the entire workflow, covering pre-milling, adhesive application, end trimming, coarse and fine profiling, dual scraping stages, and a final polishing pass.
| Overall Dimensions | 5000 × 750 × 1500 mm |
| Machine Weight | 1500 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 13.5 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |
Motion Feedback via Encoder: A high-resolution encoder monitors and directs all mechanical sequences, offering quick reaction times and a low incidence of operational faults.
Straightforward PLC Logic: The panel-mounted controller uses simple time-based programming, reducing training time for shop floor personnel while maintaining consistent cycle-to-cycle accuracy.
Two-Cutter Edge Preparation : A pair of rotating milling heads cleans the board's side surfaces by stripping away loose fibers, burn marks, and off-angle cuts before any adhesive touches the workpiece.
Even Adhesive Distribution: The heated glue vessel features an internal auger-style mechanism that spreads melted bonding agent uniformly across the entire contact area, preventing weak spots or excess squeeze-out.
Rail-Guided Flush Cutting: A linear-guide-based end-cutting station removes overhanging banding material from both leading and trailing board ends, leaving them exactly flush with the panel faces.
Successive Profiling Stages :
Initial Profiling (Coarse): Shields thin wood veneers from edge chipping; also serves as a preliminary shaping step for synthetic edging like PVC and acrylic, lessening wear on the final finishing tool.
Final Profiling (Fine): A bevel-oriented, high-revolution motor with an adjustable solid-alloy disc produces a scratch-free, uniformly contoured edge surface.
Sequential Smoothing Operations :
Primary Scraper: Eradicates undulating cutter marks generated during the profiling stages, yielding flat, ripple-free top and bottom edge zones.
Secondary Flat Scraper: Delivers a gentle follow-up pass that polishes the edge further, eliminating any remaining micro-irregularities.
Surface Brightening Unit: A soft-rotary buffing wheel provides a final sheen to the sealed edge, improving visual appeal and creating a smooth-to-the-touch finish.
Case Goods Manufacturing: Seals exposed edges on bookcases, entertainment centers, nightstands, and chests of drawers with professional-grade results.
Veneered Panel Processing: The coarse profiling station makes this machine a top choice for factories applying real wood veneers that are prone to splintering.
Synthetic Edge Banding Lines: Rough and fine trimming stages work together to handle acrylic, ABS, and polyvinyl chloride strips efficiently, extending cutter life.
Commercial Casework Production: Produces durable, clean-finished edges for office cubicles, reception desks, laboratory cabinetry, and retail display cases.
Architectural Woodwork Contractors: Delivers precision edge finishing for custom reception areas, conference room paneling, and high-end residential built-ins.
Door and Partition Fabricators: Applies moisture-sealing edges to hollow-core doors, closet sliders, and room divider panels.
Job Shop Environments: Offers the flexibility to switch between different board types, edge materials, and thicknesses without lengthy recalibration procedures.
Image details
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
