High Accuracy Woodworking CNC Router Machine for Plywood MDF

High Accuracy Woodworking CNC Router Machine for Plywood MDF

Brand Name:	BaiHang
Model Number:	BH1325M
MOQ:	1
Price:	$2000 - $2400
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao ,China

Certification:

Document:

BHM1325M.pdf

Product Name:

High Accuracy Woodworking CNC Router Machine For Plywood MDF

Place Of Origin:

Qingdao ,China

Brand Name:

Application:

Kitchen Cabinet Doors Furnitures Making

Keywords:

CNC Wood MDF Furniture Carving CNC Router

Key Selling Points:

Easy To Operate,High-accuracy

Cabinet:

Furniture, Doors And Cabinets Industry

Packaging Details:

3310*2250*1030mm

Highlight:

High Accuracy CNC Router Machine

Woodworking CNC Router for Plywood

CNC Router Machine for MDF

Product Description

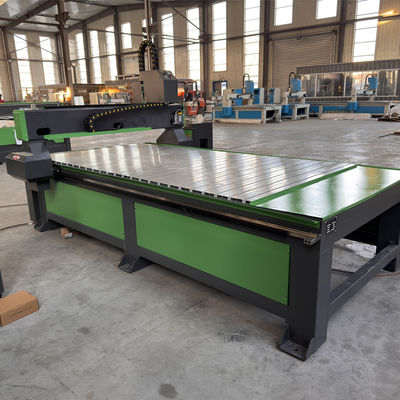

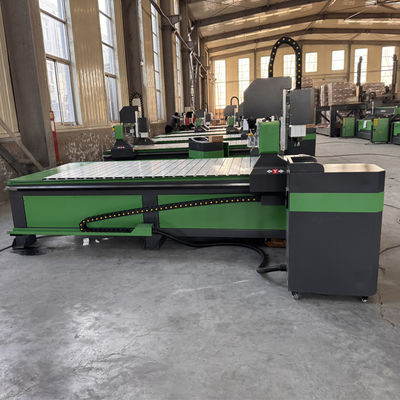

High Accuracy Woodworking CNC Router Machine for Plywood MDF

Product Overview

Engineered to offer consistent dependable operation, our CNC router adopts a sturdy build paired with a stable, high-accuracy control unit for seamless coordination. As a professional PC-controlled solution, it balances strong cutting power and precise machining, standing out for its great value and supported by premium after-sales support.

Technical Specifications

Component	Specification
Fuselage structure	Square tube welded bed body, detachable
Longmen structure	Thickened square steel gantry, cast iron columns
Mesa structure	Aluminum profiles+PVC, vertical laying of profiles
Body size	310020001750mm
Table size	1300*2500mm
Effective work schedule	1.3mX2.5m (standard board size)
Machining accuracy	0.05mm
Transmission structure	Three axis 20 square track and slider
Rack	1.25m high-precision gear rack
Z-axis component	Drive belt+gear transmission
Motor set	Chuangwei 450B stepper motor
Driver	Skyworth 860 Drive
Spindle power	6.0KW air-cooled spindle, speed 24000 RPM
Frequency converter	Zhuzhou 7.5KW frequency converter
Operating system	JM Weihong
Cabinet	Independent chassis control cabinet
Machine color	Grayish green
Working voltage	380/220V 50Hz

Special Note: Customers are allowed to customize machine models and configurations as required. Since we supply many different products, prepayment is needed to confirm orders. Quotations will be offered depending on your actual demands. Please check the real price with our sales staff after confirming the model and configuration. Get in touch with us to learn more about our products!

Key Features

MACHINE PARTS

Brand: BH

Origin: China

Features: long lifespan, low noise, free maintenance

MAIN FEATURES

Three-axis 20 square rail and slider

Brand: BH

Origin: China

Features: fast running speed and strong bearing capacity

MACHINE PARTS

Name: T-slot Table

Brand: BH

Origin: China

Features: much more economic

MAIN FEATURES

Origin: China

Name: independent control cabinet

Features: easy to operate and simple to control

Optimized Technical Specifications

Aluminum profile worktable with PVC surface: The extended aluminum beam structure delivers strong load-bearing performance, while the PVC protective layer safeguards the aluminum profile base from abrasion.

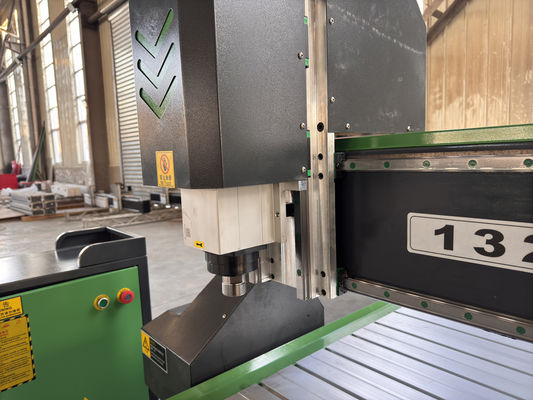

Stepper motor assembly: Premium spindle unit and cutting head support prolonged continuous running, lowering component wear, enabling rapid bearing rotation and quieter operation.

Heat-treated square steel gantry: Constructed from 1cm thick heat-treated square steel, the gantry provides outstanding structural rigidity, stable running motion and superior machining precision.

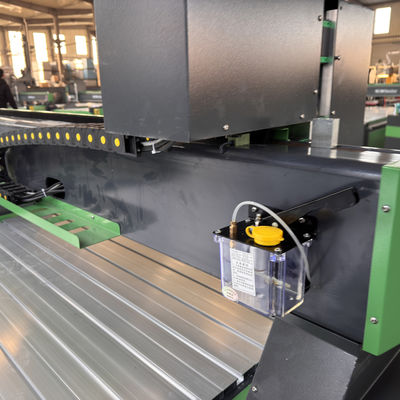

Cable drag chain: Updated wear-resistant drag chain separates power cables and signal lines to avoid signal interference and prevent cable twisting during machine operation.

Applications

Core Applications:

Woodworking: Panel fabrication, door and window production, furniture engraving and customized woodwork processing.

Advertising industry: Sign manufacturing, logo cutting and acrylic display product machining.

Model and prototype making: Architectural scale models, wooden patterns, foam molds and stage prop fabrication.

Art & handicraft production: Musical instrument carving, decorative engraving and custom craft gift manufacturing.

Frequently Asked Questions

Q1: Do you accept custom orders?

A1: Yes. We can customize machine color, dimensions and logo as requested.

Q2: Where is your factory?

A2: We are a manufacturer located in Qingdao, Shandong Province, China.

Q3: Can you manufacture machines based on my drawings or samples?

A3: Sure. Our professional designers will work out suitable design and production plans for you.

Q4: This is my first CNC machine. Is it easy to operate?

A4: We provide English operation manuals and teaching videos. Free professional guidance will be offered until you can operate it skillfully.

Q5: What is MOQ and delivery method?

A5: MOQ is 1 set. We ship goods directly to your local port. Send us your port name to get precise price and shipping cost.

Q6: How about your after-sales support?

A6: Our team offers 24-hour online service. Overseas installation service is available as well.

Q7: Can you repair my machine if it malfunctions?

A7: Yes. Free online training is provided. We offer repair service for breakdowns within the warranty term.
