| Brand Name: | BaiHang |
| Model Number: | BH2140S |
| MOQ: | 1 |
| Price: | $2400 - $3000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

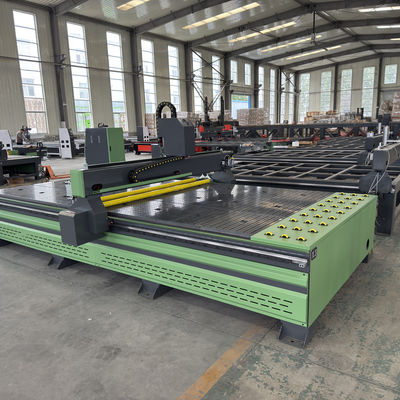

The BH2140 industrial CNC router by Baihang Machinery is purpose-built for medium-volume woodworking production. It delivers an effective working travel of 2100 × 4000 mm, perfectly matching standard-size wood sheets. Ideal for cabinet nesting, door panel carving, sign-making and non-metal milling, this machine balances rigid mechanical build and practical maintainability for furniture workshops and custom fabrication shops.

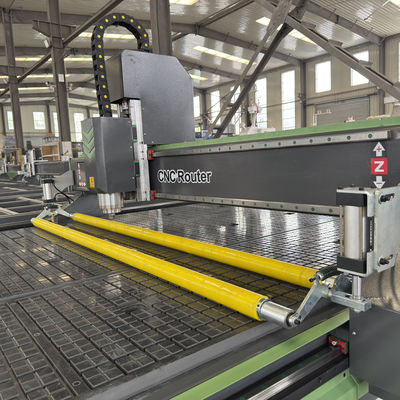

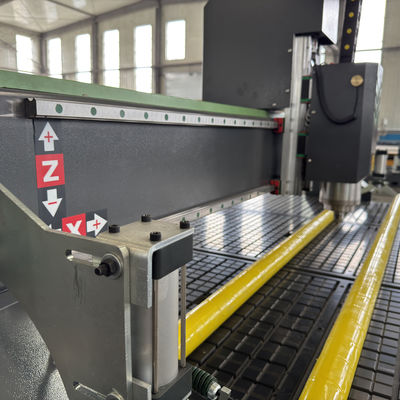

Crafted for long-shift continuous production, BH2140 eliminates accuracy drift caused by cutting vibration thanks to its heavy-duty frame construction. The cast-iron column reinforced gantry absorbs vibration during high-speed routing, keeping consistent output quality for nesting, grooving and 3D relief engraving.

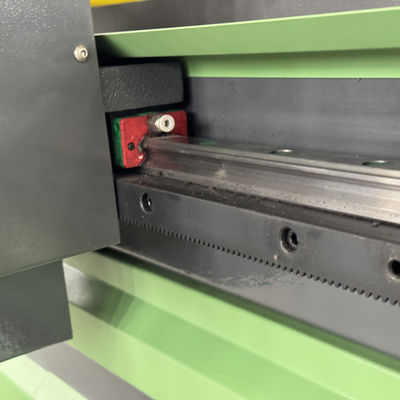

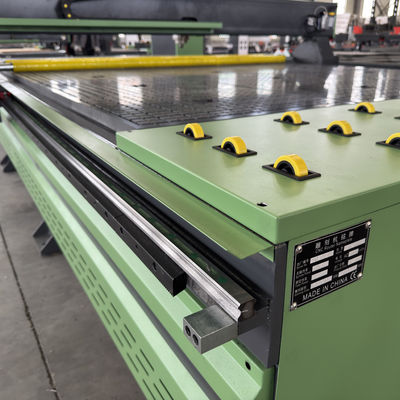

Its vertically assembled aluminum-profile table bears heavy-weight workpieces, while the PVC surface prevents direct scratches to metal profiles during frequent sheet loading. The three-axis square guide-rail and precise rack-pinion set guarantee smooth axis travel. Belt-gear Z-axis transmission offers stable downward feed for drilling and through-cutting tasks.

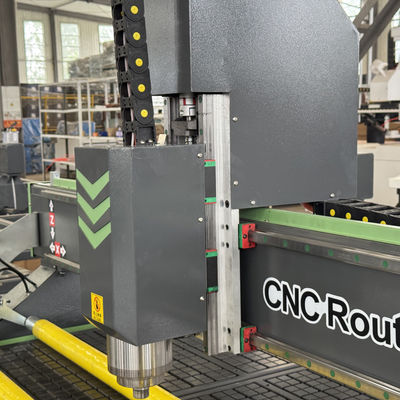

Driven by Chuangwei stepper motor groups and Skyworth drivers, matched with high-speed 6 kW air-cooled spindle, the machine handles solid wood, MDF, plywood, acrylic and PVC steadily. Schneider electric assemblies greatly cut unexpected electrical breakdowns on busy production floors.

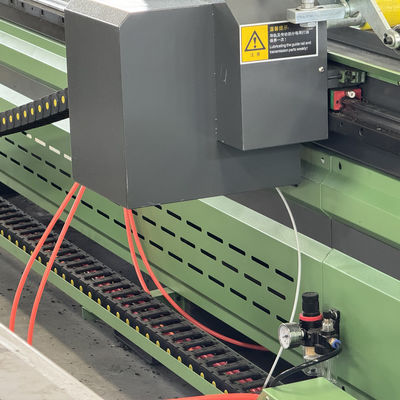

Smart maintenance-oriented designs reduce operator workload. The auto-oil injector regularly lubricates sliders, guides and screws to extend component service life. Separated wiring inside drag-chains avoids signal disturbance and cable twisting. Stand-alone cabinet simplifies inspection and troubleshooting for technicians.
| Specification | Value |
|---|---|
| Working Area | 2500 x 1300 mm |
| Table Size | 4000 x 2100 mm |
| Spindle Power | 7.5 kW (air-cooled) |
| Positioning Accuracy | ±0.05 mm |
| Power Supply | 380V / 50Hz |
| Machine Dimensions | 5000 x 2600 x 1750 mm |
Please note that configurations and models can be tailored to specific customer requirements. As product options vary, orders require an advance deposit. Final pricing is determined according to the selected model and configuration—please consult our team for an accurate quotation.
Whether you are producing custom cabinetry, architectural elements, advertising signage, or specialty components, the BHM 2140 offers the scale, precision, and durability needed to expand your capabilities and increase output. It is an ideal investment for medium to large workshops seeking to streamline production and tackle more complex, large-format projects with confidence.
