Multi Directional CNC Six Sided Drilling Machine For Cabinet Making

Multi Directional CNC Six Sided Drilling Machine For Cabinet Making

Brand Name: BH
Model Number: BHM SKZ-612B
MOQ: 1
Price: $14000 - $175000
Payment Terms: T/T
Supply Ability: 3000sets /year
Detail Information
Product Description
Detail Information
Place of Origin:
Qingdao ,China
Certification:
CE
Color:
Blue
Dimensions:
5500mm×2750mm×2300mm
Power Supply:
380V/50Hz
Spindle Speed:
18000r/min
Control System:
CNC
Drilling Diameter:
10mm~60mm
Packaging Details:
≈2800X2150X2300mm ≈5200X580X700mm ≈2300X1700X1500m
Highlight:

CNC Six Sided Drilling Machine

,

Multi Directional Six Sided Drilling Machine

,

CNC Cabinet Making Machine

Product Description

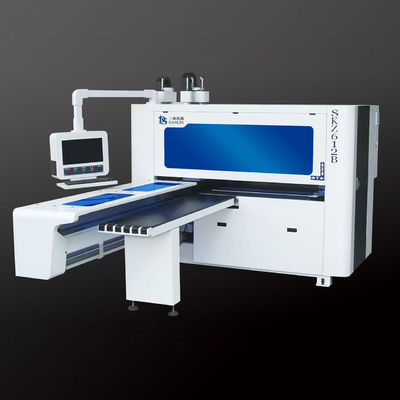

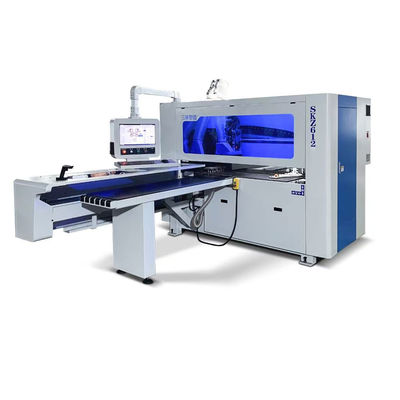

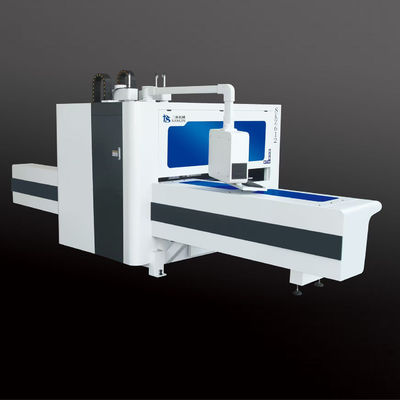

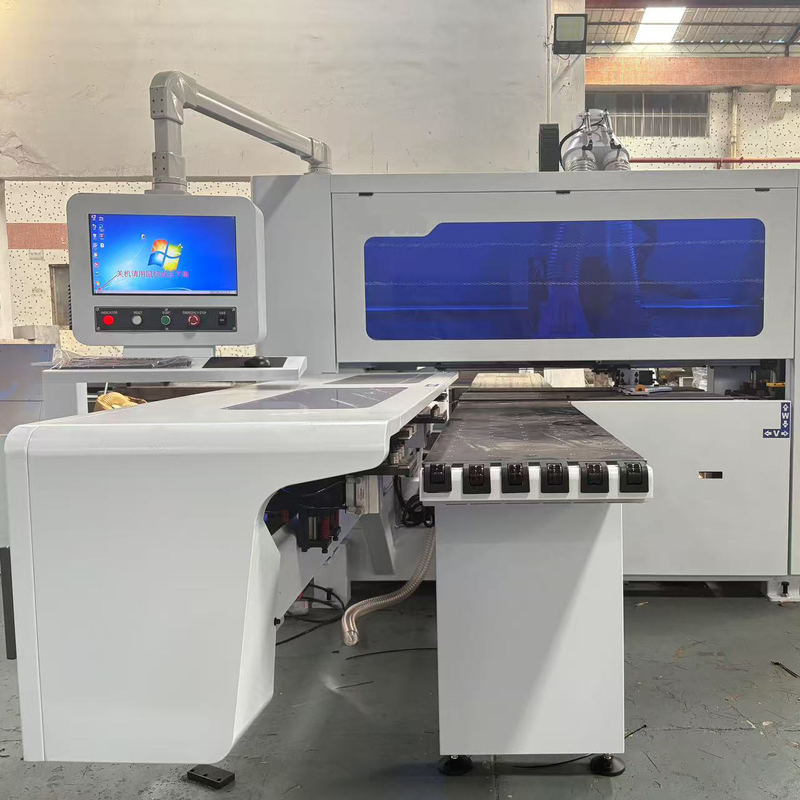

SKZ-612B Six-Sided Drilling Machine with Routing Function
The SKZ-612B Six-Sided Drilling Machine is a state-of-the-art CNC processing solution designed for high-demand woodworking applications. Combining advanced technology with robust construction, this machine delivers exceptional precision, speed, and versatility for panel processing.
Key Features
  • Multi-directional drilling: 9 upper vertical drills, 8 upper horizontal drills, and 9 lower vertical drills for simultaneous processing
  • High-speed performance: X-axis speeds up to 150m/min with 18,000 rpm routing spindle
  • Wide processing range: Handles panels from 150mm to 3050mm in length, 35mm to 1200mm in width
  • Premium components: International brands including Taiwan Puteng drill units and German gear racks
  • Intuitive control: Sanweijia CNC system for easy operation and stable performance
  • Efficient design: Built-in dust extraction system and durable construction
Technical Specifications
Parameter Specification
Drilling Capacity 9 upper vertical, 8 upper horizontal, 9 lower vertical drills
Processing Range Length: 150-3050mm, Width: 35-1200mm, Thickness: 10-60mm
Maximum Speed X-axis: 150m/min, Routing spindle: 18,000 rpm (3.5kW×2)
Key Components Taiwan Puteng drills, German gear racks, Hiwin linear guides
Control System Sanweijia CNC with intuitive interface
Premium Components
  • Control System: Sanweijia
  • Electrical Components: LS
  • Drilling Units: Taiwan Puteng
  • Gear Rack: Germany
  • Ball Screw: Germany Fulei
  • Linear Guide Rails & Sliders: Taiwan Hiwin
Multi Directional CNC Six Sided Drilling Machine For Cabinet Making 0 Multi Directional CNC Six Sided Drilling Machine For Cabinet Making 1 Multi Directional CNC Six Sided Drilling Machine For Cabinet Making 2
Frequently Asked Questions
Can customized services be supported?
Yes, we can customize the color, size, and logo you need.
Where is your factory located?
We are a Chinese manufacturer in Qingdao city, Shandong province.
Can you make the machine according to my design?
Yes. Our professional designers will create the optimal production plan for your requirements.
Is the machine easy to operate for beginners?
We provide instructional videos and manuals, plus free professional guidance until proficiency.
What's your MOQ and delivery terms?
Minimum order is 1 set, shipped directly to your designated port.
How is your after-sales service?
24/7 support with optional overseas installation services.
What about repairs during warranty?
Free online training and repair services for warranty issues.
