| Brand Name: | BH |
| Model Number: | BHM SKZ-612T |
| MOQ: | 1 |
| Price: | $14000 - $175000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

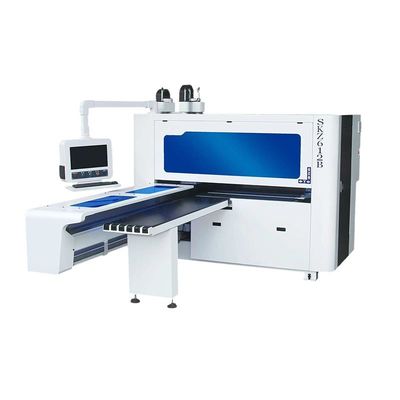

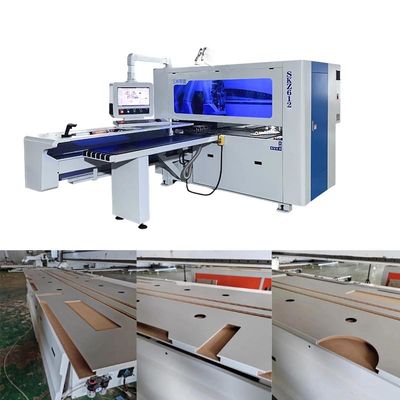

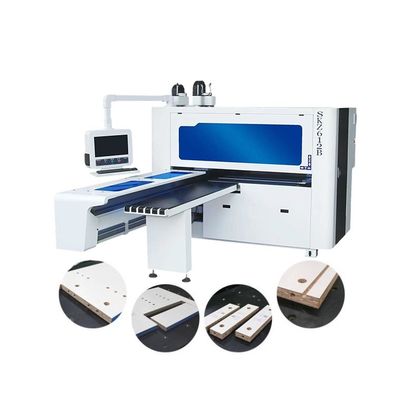

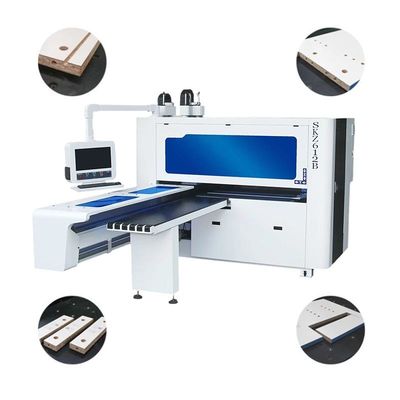

The SKZ-612T Six-Sided Drilling Machine is an advanced CNC system engineered for precision woodworking operations. It features multi-directional boring capabilities with 9 top vertical drills, 8 horizontal drills, and 9 bottom vertical drills working simultaneously. With an X-axis travel speed reaching 150m/min and an 18,000 rpm routing spindle, it ensures high-efficiency production. This equipment accommodates panels ranging from 150mm to 3050mm in length and 35mm to 1200mm in width. It incorporates premium international components such as Taiwan Puteng drilling units and German-grade rack systems. Operated through a user-friendly Sanweijia CNC interface, the machine maintains consistent performance while featuring integrated dust removal and heavy-duty construction.
| Item | Value |
|---|---|
| External dimensions | 5500*2750*2300mm |
| Total power | 19.5KW |
| Weight | 3400kg |
| Processing workpiece length | 80-3050mm |
| Processing workpiece width | 35-1200mm |
| Processing workpiece thickness | 10-60mm |
| Maximum moving speed of X-axis | 150m/min |
| Maximum Y-axis movement speed | 100m/min |
| Maximum Z-axis movement speed | 45m/min |
| Vertical drilling of upper drilling group | 9pcs |
| Upper drilling group horizontal drilling | 8pcs |
| Vertical drilling below | 9pcs |
| Drilling bit power | 2.2kw*2 |
| Milling spindle method | Er3 |
| Milling spindle speed | 18000r/min |
| Milling spindle power | Spindle 3.5kw*2 |
| Tool changing spindle tool | / |
| Workbench height | 900mm |
| Vacuum suction port diameter | 200mm.100mm |
| working voltage | 380v 50Hz |
| Working pressure | 0.6-0.8Mpa |
