| Brand Name: | BH |
| Model Number: | BHM SKZ-612 |
| MOQ: | 1 |
| Price: | $14000 - $175000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

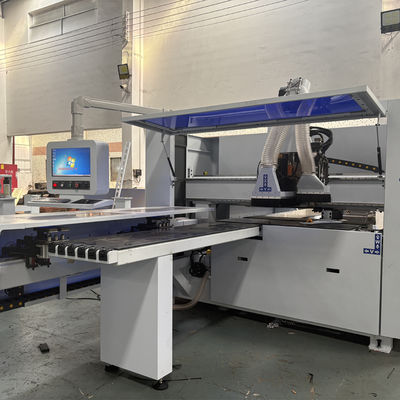

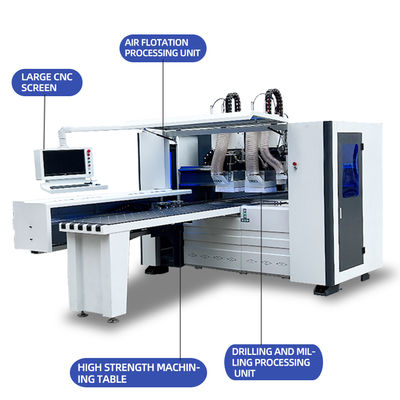

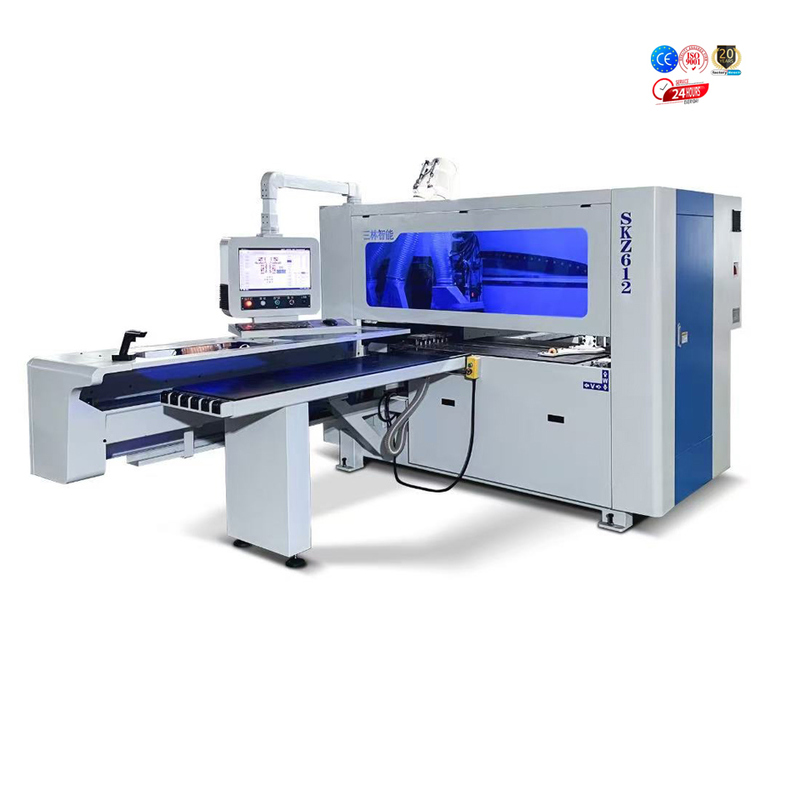

The SKZ-612 Six-Sided Drilling Machine is a high-performance CNC system engineered for precision panel processing in advanced woodworking environments. Built for efficiency and accuracy, it supports complex multi-face drilling and milling operations in a single setup.
Technical Specifications:
Dimensions: 5500 × 2750 × 2300 mm
Total Power: 19.5 kW
Machine Weight: 3400 kg
Workpiece Range: Length 80–3050 mm, Width 35–1200 mm, Thickness 10–60 mm
Axis Speeds: X-axis up to 150 m/min, Y-axis 100 m/min, Z-axis 45 m/min

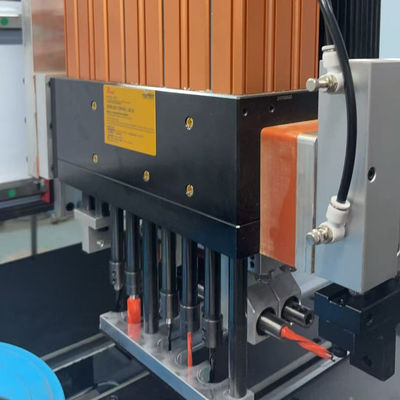

Drilling Configuration: 7 upper vertical, 4 upper horizontal, and 6 lower vertical drill units
Drill Power: 2.2 kW × 2
Milling Spindle: ER3 collet, 18,000 rpm, 3.5 kW × 2
Table Height: 900 mm
Vacuum Ports: 200 mm & 100 mm
Operating Requirements: 380V/50Hz, 0.6–0.8 MPa
Key Advantages:
Multi-directional drilling capability reduces repositioning and increases throughput.
High-speed axis movement and spindle rotation ensure rapid processing.
Compatible with a wide range of panel sizes and thicknesses.
Equipped with industrial-grade components such as Taiwan Puteng drill units and German rack-and-pinion drives for reliability.
User-friendly Sanweijia CNC system offers smooth operation and consistent performance.
Integrated dust collection ports enhance workshop cleanliness.
| Parameter | Specification |
|---|---|
| Drilling Capacity | 7 upper vertical, 4 upper horizontal, 6 lower vertical drills |
| Processing Range | Length: 150-3050mm, Width: 35-1200mm, Thickness: 10-60mm |
| Maximum Speed | X-axis: 150m/min, Routing spindle: 18,000 rpm (3.5kW×2) |
| Key Components | Taiwan Puteng drills, German gear racks, Hiwin linear guides |
| Control System | Sanweijia CNC with intuitive interface |
