| Brand Name: | BH |
| Model Number: | BHM SKZ-612T |
| MOQ: | 1 |
| Price: | $14000 - $175000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

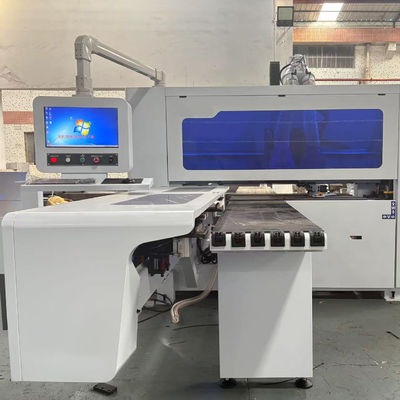

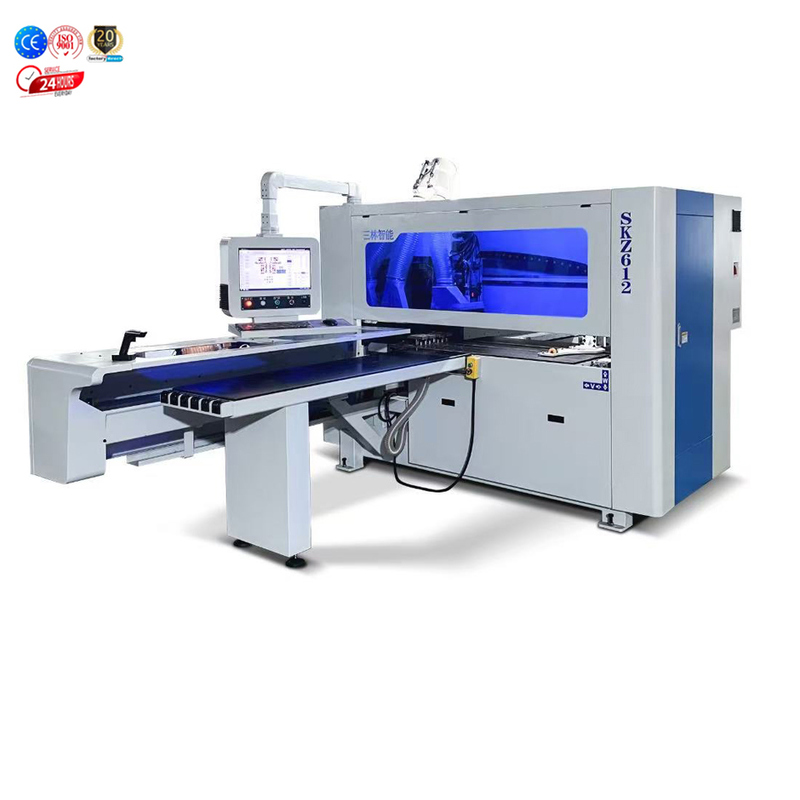

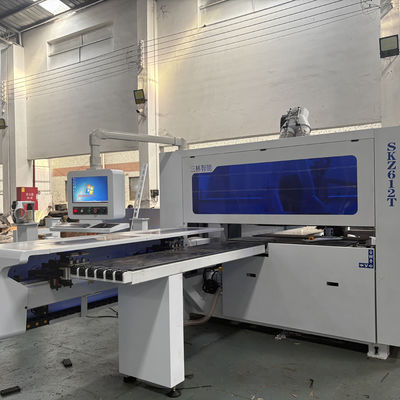

The SKZ-612T Six-Face Drilling Center is a CNC system specifically engineered for high-precision woodworking applications. It enables multi-face drilling operations with 9 top vertical spindles, 8 horizontal spindles, and 9 bottom vertical spindles working concurrently.
With an X-axis travel speed of 150m/min and featuring an 18,000 rpm routing spindle, this machine delivers exceptional production efficiency. It processes panels with lengths from 150mm to 3050mm and widths ranging from 35mm to 1200mm.

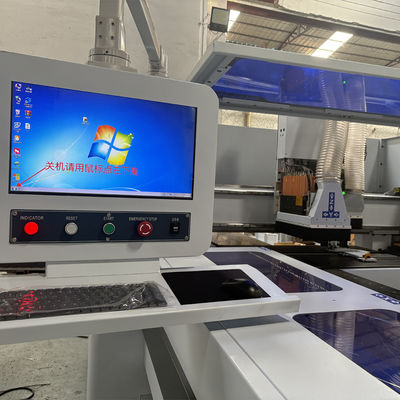

The system integrates high-quality international components, including Taiwan Puteng drilling units and precision German rack systems. Controlled through a user-friendly Sanweijia CNC interface, the machine ensures reliable performance while incorporating built-in dust extraction and a robust, heavy-duty frame.
| Item | Value |
|---|---|
| External dimensions | 5500*2750*2300mm |
| Total power | 19.5KW |
| Weight | 3400kg |
| Processing workpiece length | 80-3050mm |
| Processing workpiece width | 35-1200mm |
| Processing workpiece thickness | 10-60mm |
| Maximum moving speed of X-axis | 150m/min |
| Maximum Y-axis movement speed | 100m/min |
| Maximum Z-axis movement speed | 45m/min |
| Vertical drilling of upper drilling group | 9pcs |
| Upper drilling group horizontal drilling | 8pcs |
| Vertical drilling below | 9pcs |
| Drilling bit power | 2.2kw*2 |
| Milling spindle method | Er3 |
| Milling spindle speed | 18000r/min |
| Milling spindle power | Spindle 3.5kw*2 |
| Workbench height | 900mm |
| Vacuum suction port diameter | 200mm.100mm |
| Working voltage | 380v 50Hz |
| Working pressure | 0.6-0.8Mpa |
