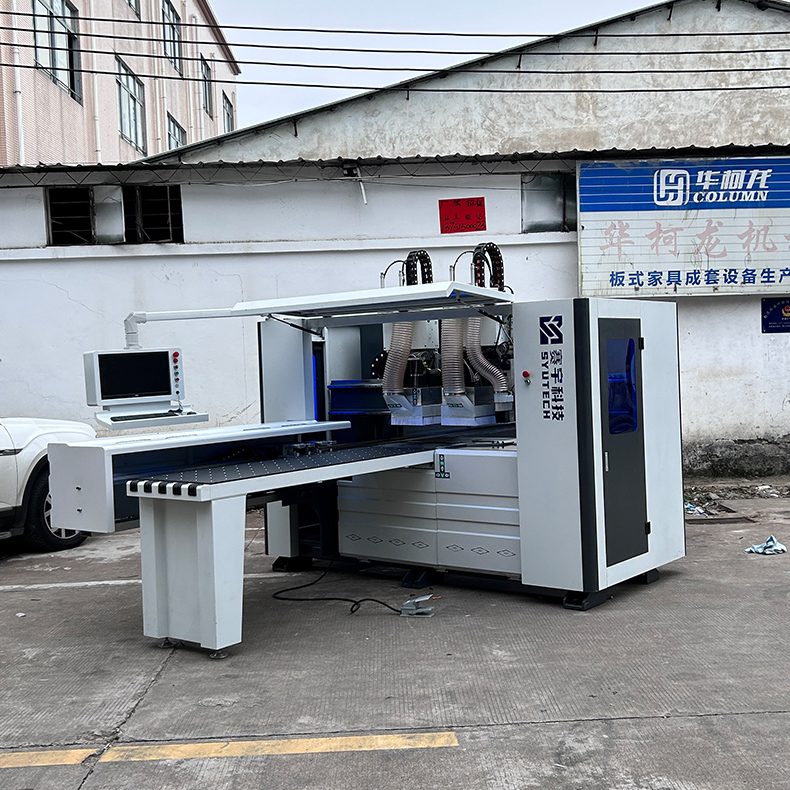

Six Sided CNC Drilling Center High Speed ATC CNC Woodworking Machine

Baihang Machinery Co., Ltd., backed by 20 years of expertise in woodworking machinery manufacturing, presents the 3H Series of professional six-sided drilling machines. Engineered to meet the rigorous demands of modern, high-speed furniture production, this equipment represents a fusion of stability, ultra-high efficiency, and precision. It is designed to automate and streamline the drilling and milling processes for a wide variety of panel materials, making it an indispensable asset for manufacturers aiming to enhance productivity and product quality.

Core Functionality and Applications
The primary function of the six-sided drill is to perform drilling and milling operations on all six faces of a workpiece in a single setup. This capability is crucial for furniture manufacturing, where components often require numerous holes for connectors, hinges, and assembly. The machine excels in processing a diverse range of materials, including:

• Chipboard

• Multilayer Board

• Density Board

• Plexiglass Plate

• Acrylic Plate

• PVC Board

• ABS Plate

• Alufer (Aluminum Composite Panel)

• Sandwich Panel

A key technological advantage is its ability to perform "Cutting Plate Without Edge Collapse," ensuring clean, chip-free edges on even the most delicate materials like acrylic and veneered boards, thereby significantly reducing material waste and improving the finish quality.

Technical Specifications and Configurations
Baihang offers the machine in several configurations to suit different production needs and budgets, primarily the SKZ612 (standard), SKZ612T (high configuration), and SKZ612T with ATC (Automatic Tool Changer). Key specifications across these models include:

• Workpiece Processing Range: Length 80-3050mm, Width 35-1200mm, Thickness 10-60mm.

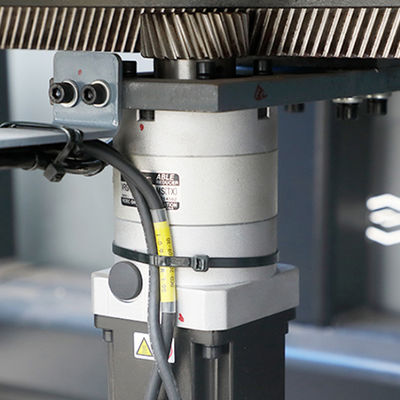

• High-Speed Performance: Axes speeds of up to 150m/min (X), 100m/min (Y), and 45m/min (Z) ensure rapid cycle times.

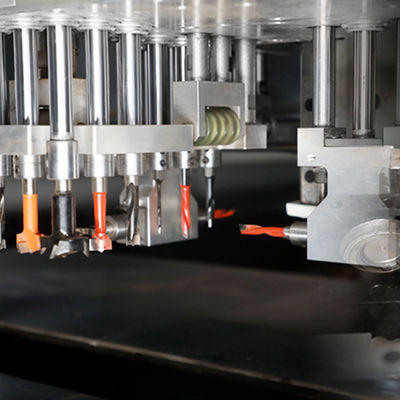

• Drilling and Milling Capacity: The high-configuration models feature 9 upper vertical drills, 8 upper horizontal drills, and 9 lower vertical drills, allowing for highly complex hole patterns in a single pass. The routing and milling spindle operates at 18,000 rpm for precise edge work.

• Power and Requirements: Operating on standard 380V/50Hz power, the machine requires an air pressure of 0.6-0.8Mpa.

Key Features and Operational Excellence

1. Intelligent Industrial Computer System: The machine is operated via a large CNC screen and an intelligent industrial computer. This system is designed for ease of use, making the machine easy to learn and easy to operate, while ensuring operational safety and process control.

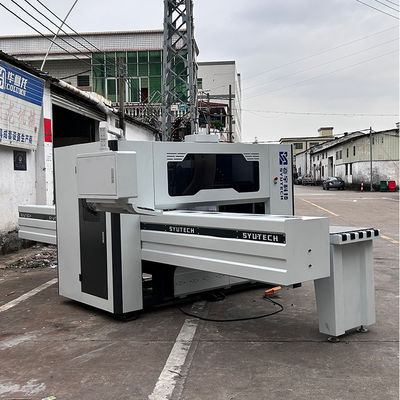

2. Robust Structural Design: The machine is built around a high-strength machining table and strengthening workbench. This construction guarantees stability during high-speed operations, preventing deformation and ensuring long-term, sturdy and durable performance with consistent accuracy.

3. Double Gripper Operation: Featuring a high-speed dual gripper structure, this system minimizes the number of grip changes required during the processing cycle. This directly translates to higher work efficiency and reduced non-processing time.

4. Automatic Tool Changer (ATC) Option: The top-tier model includes a 4-drill ATC, which automates the changing of drill bits, further enhancing unmanned operation capabilities and flexibility for jobs requiring multiple hole sizes.

5. Automatic Oil Filling Device: With computer-recognized automatic oiling during processing, the machine ensures that all moving parts are consistently lubricated. This feature boosts efficiency by eliminating manual intervention and contributes to the machine's longevity and reliability.

6. High-Quality Core Components: Baihang ensures reliability by integrating premium components from internationally recognized brands. The standard configuration includes:

   • System: Sanweijia

   • Servo Motor: Mingzhi

   • Electrical Components: LS

   • Linear Guide: Taiwan Hiwin

   • Ball Screw: Germany Furet

   • Drill Kit: Taiwan Puden

   • Spindle: Changchuan

   • Barcode Scanner: Honeywell
     This commitment to quality underpins the machine's stable and reliable quality.
