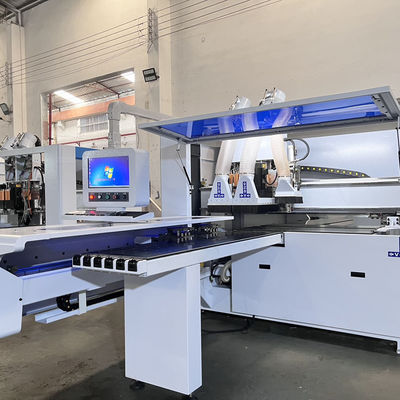

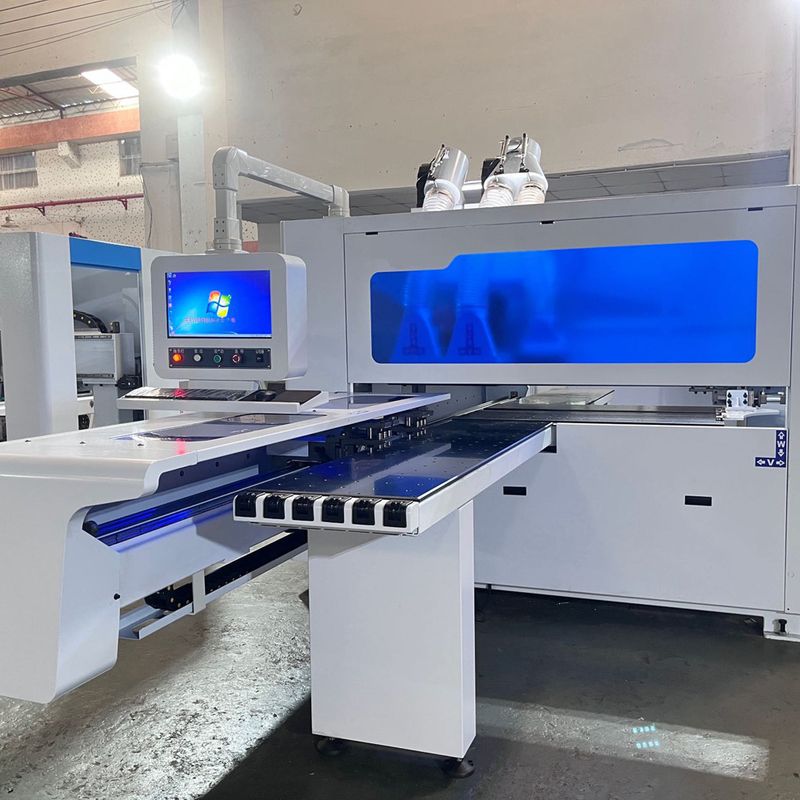

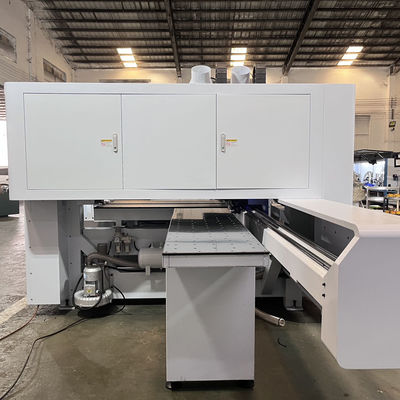

High Speed Six Sided CNC Drilling And Milling Machine For Wood & Panels

High Speed Six Sided CNC Drilling And Milling Machine For Wood & Panels

Brand Name:	BH
Model Number:	BHM SKZ-612B
MOQ:	1
Price:	$14000 - $175000
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao ,China

Certification:

Drilling Capacity:

9 Upper Vertical, 8 Upper Horizontal, 9 Lower Vertical Drills

Dimensions:

5500mm×2750mm×2300mm

Power Supply:

380V/50Hz

Spindle Speed:

18000r/min

Drilling Capacity 9 Upper Vertical, 8 Upper Horizontal, 9 Lower Vertical Drills. Processing Range Le:

Sanweijia CNC With An Intuitive Interface.

Drilling Diameter:

10mm~60mm

Packaging Details:

≈2800X2150X2300mm ≈5200X580X700mm ≈2300X1700X1500m

Highlight:

Six Sided CNC Drilling And Milling Machine

High Speed CNC Drilling And Milling Machine

Wood CNC Drilling And Milling Machine

Product Description

High Speed CNC Six Sided Drilling & Milling Machine For Wood & Panels

Step into the future of automated manufacturing with the Baihang SKZ-612B Multi-Sided Machining Center, a state-of-the-art CNC solution engineered to redefine efficiency and precision. This advanced system performs comprehensive drilling and milling on all six faces of a workpiece in one seamless, automated cycle.

Superior Performance Across Diverse Materials

The SKZ-612B is built to handle an extensive array of panel materials with confidence and remarkable accuracy. It is perfectly calibrated for:

Engineered Wood Products: Including Particle Board, MDF, and Plywood.
Modern Composites: Such as Aluminum Composite Panels and Structural Insulated Panels.
Synthetics and Plastics: Like Acrylic, PVC, and Polycarbonate Sheets.

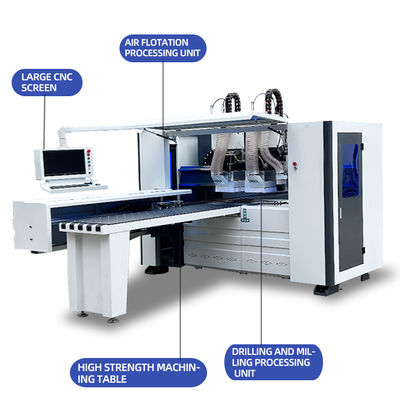

Engineered for Peak Efficiency and Smart Operation

Unshakable Structural Foundation: The machine features a heavily reinforced, vibration-dampening worktable for absolute stability during high-speed operation.
Intuitive Control and Connectivity: Operation is centralized through a user-friendly intelligent console with large industrial display.
Advanced Automated Handling: An intelligent dual-gripper system optimizes material flow, dramatically reducing idle time between cycles.
Premium Component Integration: Reliability is engineered into every aspect with high-fidelity, internationally sourced parts.

Adaptable Configurations for Your Specific Needs

The Baihang 3H platform is designed with flexibility in mind, offering scalable configurations to match your production volume and complexity.

Technical Specifications Overview

Drilling Capacity	9 upper vertical, 8 upper horizontal, 9 lower vertical drills
Processing Range	Length: 150-3050mm, Width: 35-1200mm, Thickness: 10-60mm
High-Speed Performance	X-axis: 150m/min; Routing Spindle: 18,000 rpm (3.5kW×2)
Key Components	Features Taiwan Puteng drills, German gear racks, and Hiwin linear guides
Control System	Sanweijia CNC with an intuitive interface

Frequently Asked Questions

Can customized services be supported?

Yes, we can customize the color, size, and logo you need.

Where is your factory located?

We are a Chinese manufacturer in Qingdao city, Shandong province.

Can you make the machine according to my design?

Yes. Our professional designers will create the optimal production plan for your requirements.

Is the machine easy to operate for beginners?

We provide instructional videos and manuals, plus free professional guidance until proficiency.

What's your MOQ and delivery terms?

Minimum order is 1 set, shipped directly to your designated port.

How is your after-sales service?

24/7 support with optional overseas installation services.

What about repairs during warranty?

Free online training and repair services for warranty issues.
