Intelligent CNC Six Side Drilling Machine For Automated Panel Fabrication

Intelligent CNC Six Side Drilling Machine For Automated Panel Fabrication

Brand Name: BH
Model Number: BHM SKZ-612T
MOQ: 1
Price: $14000 - $175000
Payment Terms: T/T
Supply Ability: 3000sets /year
Detail Information
Product Description
Detail Information
Place of Origin:
Qingdao ,China
Certification:
CE
Drilling Capacity:
9 Upper Vertical, 8 Upper Horizontal, 9 Lower Vertical Drills
Dimensions:
5500mm×2750mm×2300mm
Spindle Speed:
18000r/min
Drilling Capacity 9 Upper Vertical, 8 Upper Horizontal, 9 Lower Vertical Drills. Processing Range Le:
Sanweijia CNC With An Intuitive Interface.
Drilling Diameter:
10mm~60mm
Power Supply:
380V/50Hz
Packaging Details:
≈2800X2150X2300mm ≈5200X580X700mm ≈2300X1700X1500m
Highlight:

Intelligent CNC Six Side Drilling Machine

,

Automated CNC Six Side Drilling Machine

Product Description
Automated Panel Fabrication Intelligent 6 Side Drilling Machine
Welcome to a simpler way to work. The Baihang SKZ-612T is a clever machine designed to drill and shape wood and plastic panels from every angle without manual intervention. It saves time, eliminates costly errors, and delivers perfect results consistently.
One Machine, Endless Materials
This versatile system handles a wide range of materials with precision:
  • Common Wood Panels: Particle board, MDF, and plywood
  • Modern Composite Panels: Aluminum composite material and sandwich panels
  • Plastics & Acrylics: PVC, acrylic, and polycarbonate sheets
The smart cutting technology creates smooth edges while carefully handling fragile laminates and brittle plastics, eliminating chips and cracks for flawless finishes with minimal material waste.
Designed for Simple, Unstoppable Performance
Engineered for both power and user-friendly operation:
  • Rock-Solid Foundation: Heavy worktable absorbs vibration for steady, accurate operation at top speeds
  • Easy-to-Use Controls: Large, clear screen with simple software for straightforward setup of complex jobs
  • Automated for Speed: Dual smart grippers move panels efficiently with minimal downtime
  • Quality Components: Top-grade parts including Taiwan Puteng drills, German gear racks, and Hiwin linear guides
Technical Specifications
Drilling Capacity 9 upper vertical, 8 upper horizontal, 9 lower vertical drills
Processing Range Length: 150-3050mm, Width: 35-1200mm, Thickness: 10-60mm
High-Speed Performance X-axis: 150m/min; Routing Spindle: 18,000 rpm (3.5kW×2)
Key Components Taiwan Puteng drills, German gear racks, Hiwin linear guides
Control System Sanweijia CNC with intuitive interface

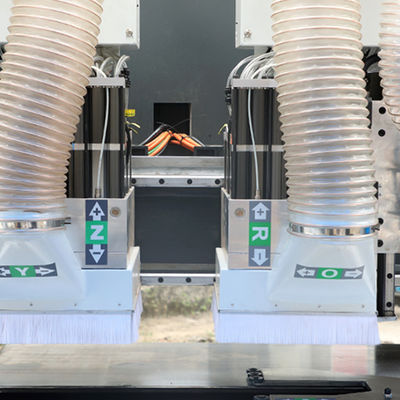

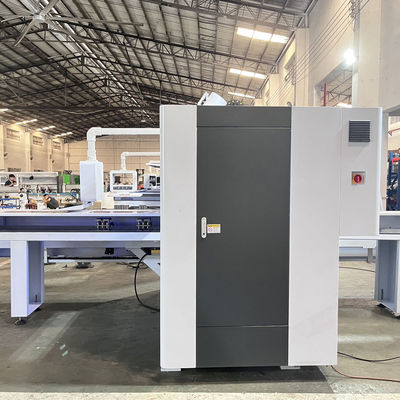

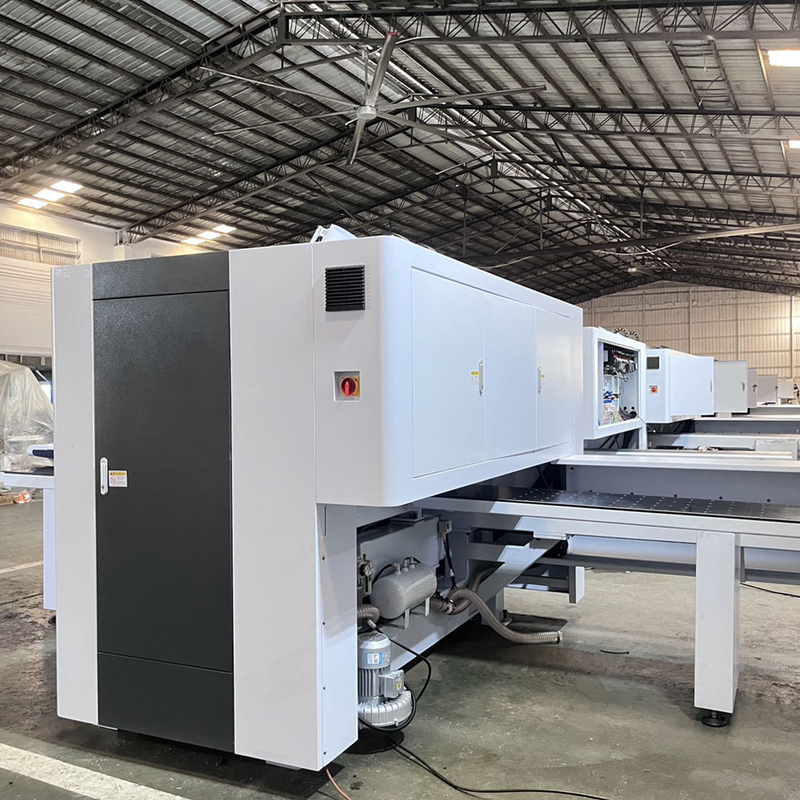

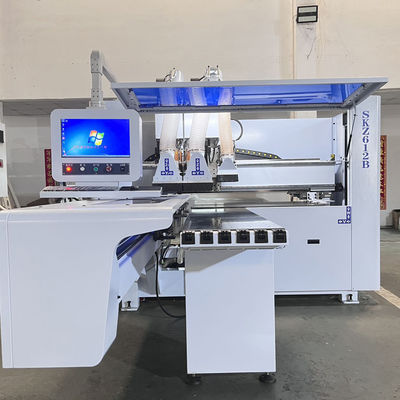

Intelligent CNC Six Side Drilling Machine For Automated Panel Fabrication 0 Intelligent CNC Six Side Drilling Machine For Automated Panel Fabrication 1 Intelligent CNC Six Side Drilling Machine For Automated Panel Fabrication 2
Frequently Asked Questions
Can customized services be supported?
Yes, we can customize the color, size, and logo you need.
Where is your factory located?
We are a Chinese manufacturer in Qingdao city, Shandong province.
Can you make the machine according to my design?
Yes. Our professional designers will create the optimal production plan for your requirements.
Is the machine easy to operate for beginners?
We provide instructional videos and manuals, plus free professional guidance until proficiency.
What's your MOQ and delivery terms?
Minimum order is 1 set, shipped directly to your designated port.
How is your after-sales service?
24/7 support with optional overseas installation services.
What about repairs during warranty?
Free online training and repair services for warranty issues.
