Edgebander Machine Woodworking Edge Bander Automatic High Precision PVC Edge Banding Machine

Edgebander Machine Woodworking Edge Bander Automatic High Precision PVC Edge Banding Machine

Brand Name:	BH
Model Number:	468YJ
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Dimension:

6600*900*1600mm

Conveyor Speed:

18~24m/min

Weight:

2600kg

Minimum Width Of Board:

50mm

Minimum Length Of Board:

70mm

Working Pressure:

0.7MPa

Packaging Details:

6700*1000*1700mm

Highlight:

automatic edge banding machine for woodworking

high precision PVC edge bander

woodworking edge banding machine with warranty

Product Description

Edgebander Machine Woodworking Edge Bander Automatic High Precision PVC Edge Banding Machine

Product Features of Edge Banding Machine

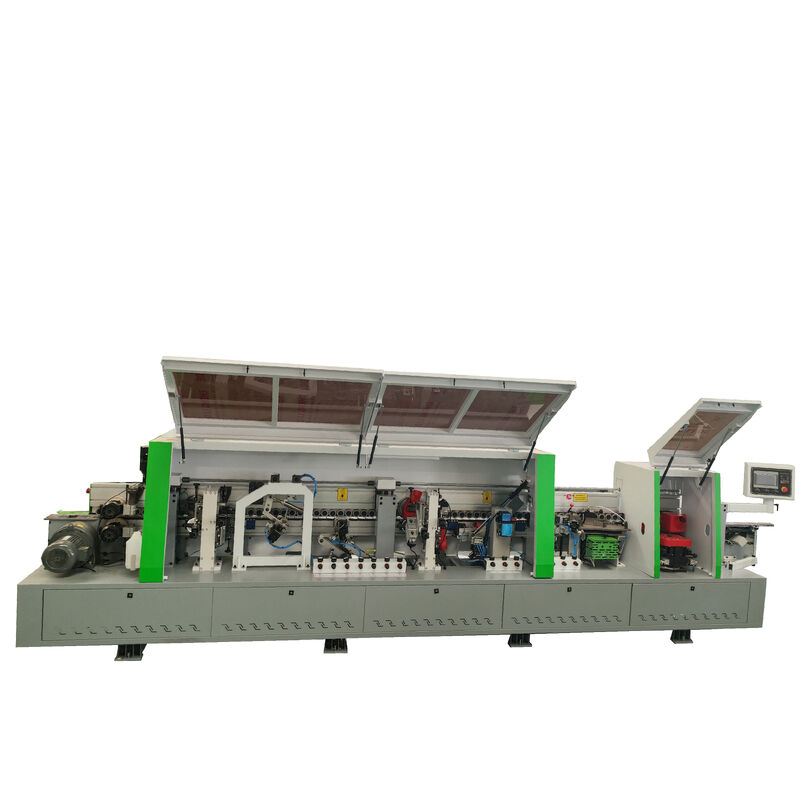

This industrial edge banding machine is engineered with a fully automated modular structure, integrating 8 core processing stations to deliver precision edge finishing for wood-based panels. Its heavy-duty welded steel frame ensures minimal vibration during high-speed operation, with a maximum processing speed of 25 meters per minute and panel thickness compatibility ranging from 10mm to 60mm. The machine features an intelligent temperature control system for its glue pot, maintaining EVA/PUR adhesive temperatures within ±1℃ to guarantee consistent bonding strength. The servo-driven feeding system, paired with precision guide rollers, achieves a positioning accuracy of ±0.05mm, ensuring uniform edge alignment across panels of varying sizes.

A key design highlight is its dust extraction integration, with dedicated ports at the trimming and scraping stations that capture over 95% of wood dust and debris, creating a cleaner working environment. The machine’s transparent safety covers with pneumatic lifting mechanisms provide quick access for maintenance while adhering to CE safety standards. Its touch-screen HMI allows for one-click recipe storage, enabling operators to recall parameters for different edge band materials (PVC, ABS, veneer) in seconds, reducing changeover time by up to 40%.

Outline dimension	66009001600mm	Conveyorspeed	18~24m/min
Machine weight	2600kg	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	17.9kW	Working pressure	0.7MPa
Plate thickness	10~60mm	Edge banding thickness	0.3~3mm

Advantages
Compared to semi-automatic alternatives, this edge banding machine offers a 30% higher throughput through continuous, unmanned operation, making it ideal for high-volume furniture production facilities. Its multi-station processing eliminates the need for manual repositioning, reducing labor costs by up to 50% while minimizing human error in edge alignment. The machine’s adaptive trimming system uses diamond-tipped cutters that self-adjust to panel thickness, delivering a seamless finish that requires no post-processing, thus saving 20% in material waste.

Energy efficiency is another standout benefit: the machine’s variable-frequency drives and heat recovery system reduce power consumption by 15% compared to standard models. Its robust construction, featuring corrosion-resistant aluminum alloy components and sealed bearings, ensures a service life of over 10 years with minimal maintenance. The machine also boasts superior compatibility, supporting both straight and curved edge banding with optional attachments, providing versatility that single-function machines cannot match.

Functions
The machine executes a complete edge banding workflow in a single pass:

Pre-milling: A high-speed cutter trims panel edges to ensure uniformity, removing imperfections for optimal adhesion.

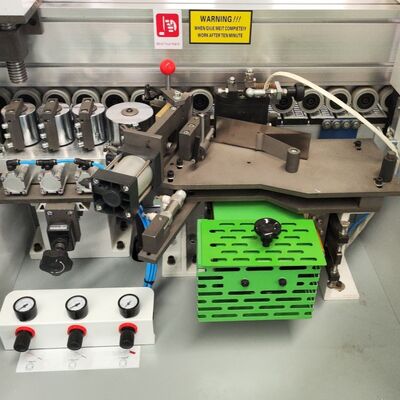

Gluing: A precision glue applicator roller applies adhesive evenly, with adjustable coating thickness from 0.1mm to 0.3mm.
Edge Feeding: An automatic feeding system synchronizes edge band material with panel movement, ensuring zero gaps.
End Cutting: Pneumatically actuated blades trim excess edge band from panel ends with clean, square cuts.
Rough Trimming: A rotating cutter removes bulk excess material from the top and bottom edges.
Fine Trimming: A second set of blades achieves a flush finish with ±0.02mm accuracy.
Scraping: A flexible scraping wheel removes glue residue and smooths surface irregularities.
Buffing: A felt roller polishes the finished edge to a satin-like appearance.

Optional functions include corner rounding, which creates rounded edges for safety and aesthetics, and a grooving station for installing decorative elements or hardware.

Applications
This edge banding machine is a cornerstone of modern woodworking production lines, primarily used in manufacturing kitchen cabinets, office furniture, wardrobes, and retail display fixtures. It excels at processing particleboard, MDF, plywood, and solid wood panels, providing professional edge finishing that enhances product durability and visual appeal. The machine is also widely employed in the construction sector for producing prefabricated interior wall panels and door components, where clean, durable edges are critical for structural integrity.

In custom furniture workshops, its quick-change capabilities allow for efficient production of small-batch, personalized orders, while in large-scale factories, it integrates seamlessly with CNC panel saws and conveyor systems to create fully automated production lines.

Transportation & Installation
The machine is shipped in a reinforced wooden crate with foam padding to protect precision components during transit. It is divided into 2 modular sections for easier handling, with a total net weight of 2600kg. We offer sea freight, air freight, and land transportation options, with FOB and CIF terms available. All shipments include a detailed installation manual, electrical schematic, and a 12-month warranty.

Our technical team provides on-site installation and commissioning services, including calibration of processing stations, operator training, and performance testing. The machine requires a 380V 3-phase power supply and compressed air (0.6–0.8MPa) for operation. We also offer optional spare parts kits and annual maintenance contracts to ensure long-term reliability.
