Cabinet Furniture Making 1830 ATC Cnc Nesting Machine With Taiwan LNC Controller

Name: Cabinet Furniture Making 1830 ATC Cnc Nesting Machine With Taiwan LNC Controller
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 1830
Availability: InStock

Brand Name:	BH
Model Number:	1830
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Overall Dimensions:

6900*2570*2100mm

Speed:

60m/min

Transmission Type:

X/Y Rack And Pinion; Z Lead Screw

Table Structure:

Partitioned Vacuum Adsorption Table

Spindle Power:

9kw

Packaging Details:

7000*2670*2200mm

Highlight:

1830 ATC CNC nesting machine

CNC nesting machine with Taiwan controller

cabinet furniture CNC nesting machine

Product Description

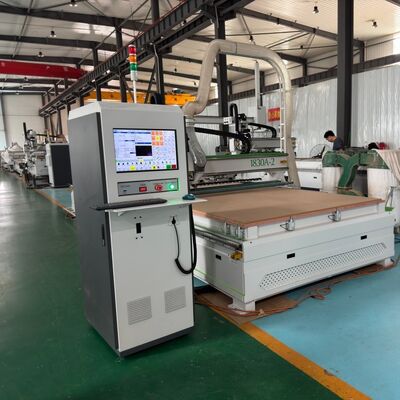

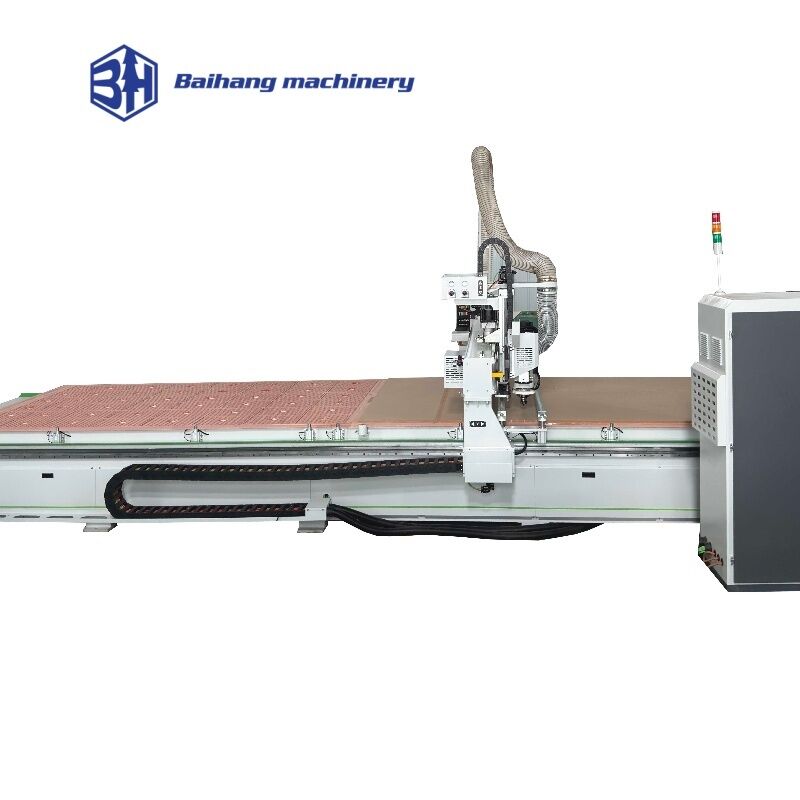

Cabinet Furniture Making 1830 ATC Cnc Nesting Machine With Taiwan LNC Controller

Product Introduction

The 1830A-2 Dual-Station Linear Tool Changer Machining Center redefines automation and intelligence in woodworking, leveraging advanced technologies to streamline processes and reduce human error. Designed for the era of smart manufacturing, this machine integrates a suite of automated features—from intelligent tool management to adaptive processing—making it a cornerstone of modern, connected workshops.

At its core is the Taiwanese LNC control system, a smart platform that supports real-time data monitoring, remote diagnostics, and program optimization. The system’s user-friendly HMI allows operators to access a range of intelligent functions, including automatic tool offset compensation, graphical program simulation, and batch processing. This not only simplifies operation but also ensures consistent performance across shifts, as the system minimizes the impact of operator skill levels.

The machine’s automation extends to its mechanical components. The dual-station design, paired with a zoned vacuum adsorption table, enables automatic workpiece clamping and release—eliminating the need for manual fixturing. A 12-tool linear magazine, equipped with patent-designed tool holders and tool life sensors, supports automatic tool selection and replacement, ensuring that the right tool is used for each operation without human intervention. The centralized lubrication system further enhances automation by delivering precise amounts of lubricant to critical components at scheduled intervals, reducing maintenance tasks.

Parameter Specification

Component	Specification
Overall dimensions	690025702100mm
Sheet processing dimensions	3050183018mm
Running Speed	60m/min
Transmission type	X/Y rack and pinion; Z lead screw
Table structure	Partitioned vacuum adsorption table
Spindle power	9kw
Spindle speed	18000~24000r/min
Maximum operating speed	20m/min
Operating voltage	AC380/3PH/50HZ

Product Advantages

Intelligent Process Optimization: The LNC control system uses advanced algorithms to optimize cutting parameters based on material type and thickness. This adaptive processing ensures that the machine operates at peak efficiency, reducing cycle times while maintaining cutting quality. The system also supports real-time data collection, allowing managers to monitor production metrics (such as throughput and tool life) and make data-driven decisions to improve performance.
Seamless Integration with Smart Workflows: The machine is compatible with industry-standard communication protocols, enabling integration with enterprise resource planning (ERP) and manufacturing execution system (MES) software. This allows for seamless order management, from design to production, and supports traceability of each workpiece—critical for quality control and compliance in regulated industries.
Reduced Human Error: Automated features such as automatic tool changing, workpiece positioning, and sequence processing minimize the risk of human error. For example, the form-based sequence programming function eliminates manual program imports, reducing the chance of incorrect program selection. The zoned vacuum adsorption table ensures that workpieces are clamped securely, preventing shifts that can lead to defective parts.
Remote Monitoring & Diagnostics: The LNC control system supports remote access, allowing technical support teams to monitor the machine’s performance and diagnose issues from a distance. This reduces downtime by enabling quick troubleshooting and minimizing the need for on-site service visits. Operators can also receive real-time alerts via mobile devices, ensuring that potential issues are addressed promptly.
Scalable Automation: The machine’s modular design supports future upgrades, such as the addition of robotic loading/unloading systems or advanced vision inspection tools. This scalability allows businesses to gradually increase automation levels as their needs grow, without replacing the entire machine.

Product Applications

Large-Scale Furniture Factories: Integrated into automated production lines, the machine supports high-volume, consistent production of furniture components. Its compatibility with ERP/MES systems enables seamless order management and traceability.
Custom Furniture Brands: The machine’s adaptive processing and sequence programming features support the production of custom orders with minimal setup time. This allows brands to offer a wide range of designs while maintaining efficiency.
Architectural Millwork Companies: Producing high-precision decorative panels and millwork components, the machine’s intelligent features ensure that each piece meets strict architectural standards.
Research & Development Labs: Used for prototyping new furniture designs, the machine’s flexibility and precision allow engineers to test different materials and configurations quickly.

Equipment Configuration

Control System: Taiwan Baoyuan control system is stable, fast-responding, and features a user-friendly interface that makes operation simple and intuitive.

Zoned vacuum adsorption table The patented design features partitioned vacuum adsorption and screw-fixed tabletop for stronger suction and to prevent small boards from slipping out of place.

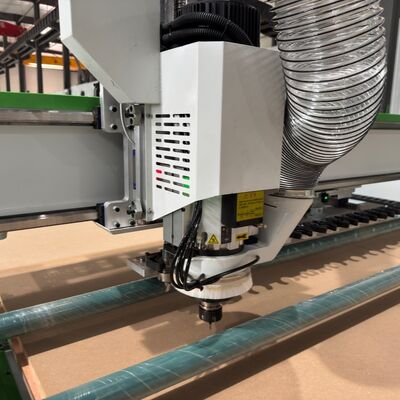

Spindle: Spindle: CC/9KW high-power tool-changing spindle, 18000-24000r/min, with high cutting torque, fast speed, and easy movement.

Linear 12-tool magazine. Meets the needs of customers who want to use it as both a cabinet and a door, and currently boasts the largest tool capacity on the market; it features a patented tool clip design, a rear spring design, and high-quality PE material.

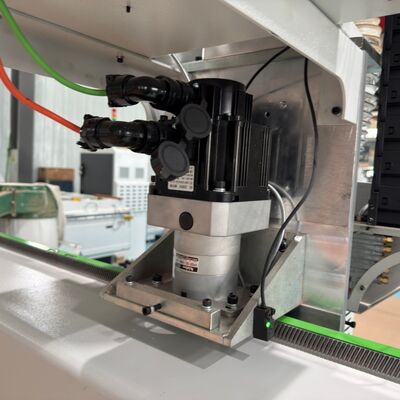

XYZ drive motors: Customized 1.5KW servo motor; driver is a servo drive (matched to the motor above).

Patented dust collection hood. The dust collection effect is excellent, effectively removing dust from even the cutting grooves. Alternatively, a four-sided blowing dust cover can be selected for dust-free material handling.

Reducer: The Japanese Shinpo gear reducer adopts a helical planetary structure design, which results in higher precision and a longer service life.

Steel crossbeam. Both the bed and the crossbeam are hardened and sandblasted, and then machined using a CNC five-sided machining center to ensure the strength of the gantry and the precision of machining during heavy cutting.

Guide Rails: Taiwanese steel strip (25MM) offers higher precision and greater hardness.

11KW vacuum pump. High-power adsorption ensures the small plate does not shift.

High precision, 1.5 module P &C rack and pinion transmission. High speed, high precision, and strong wear resistance of materials

Drag chain:The cable chain uses an imported layered and separate wiring design, with each wire individually separated for easy troubleshooting

Shipping & Logistics

The 1830A-2 is shipped with a focus on protecting its advanced electronic and mechanical components. The machine is enclosed in a reinforced wooden crate, with shock-absorbing foam surrounding the control system, spindle, and tool magazine. Electronic components are wrapped in moisture-resistant material to prevent damage during transit.

Shipping options are tailored to the needs of smart manufacturing businesses:

Sea Freight: For international orders, sea freight is the most cost-effective option, with lead times of 25 to 45 days. We work with freight forwarders specializing in industrial equipment to ensure timely delivery and proper handling.
Door-to-Door Delivery with Integration Support: Our door-to-door service includes not only transportation and installation but also assistance with integrating the machine into your existing smart workflows. Our technical team will work with your IT department to connect the machine to your ERP/MES systems and ensure seamless data flow.
