| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |

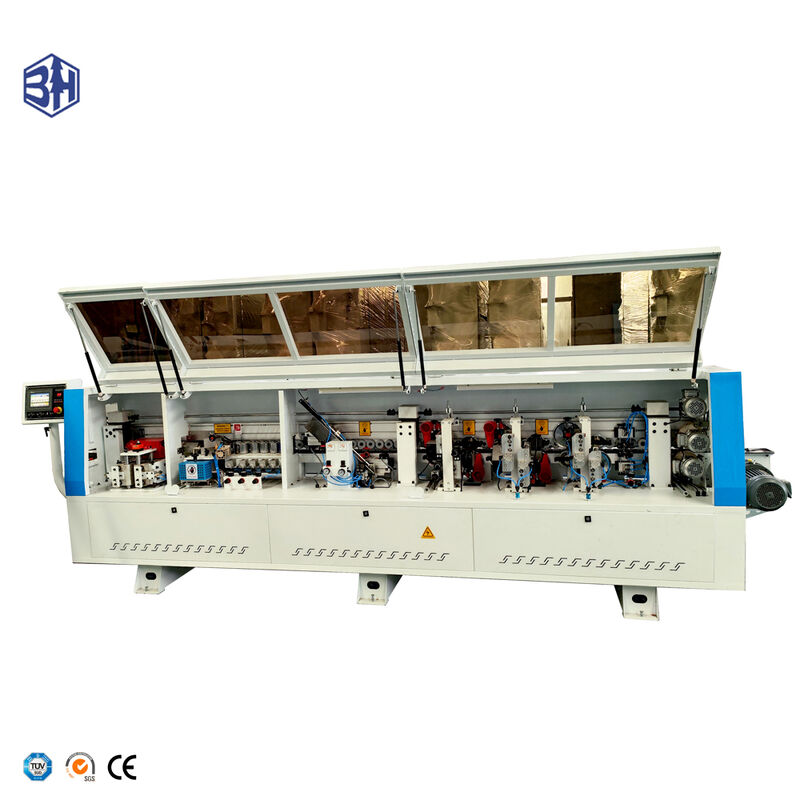

This heavy-duty industrial edge banding station is independently developed by Baihang Machinery for medium & large furniture factories, covering full-process panel edge finishing from pre-milling to polishing in one continuous workflow. It delivers stable high-speed operation, ultra-precise trimming effect and long service life, perfectly matching mass production of custom cabinets, wardrobe panels, wooden doors and office furniture boards. Compatible with PVC, melamine, solid wood veneer and ABS edge tapes, it eliminates manual secondary polishing and trimming to cut labor waste and improve finished product uniformity.
| No | Item | Data |
|---|---|---|
| 1 | Dimensions | 5000 x 750 x 1500 mm |
| 2 | Weight | 1500 kg |
| 3 | Operating Voltage | 380V/50Hz |
| 4 | Total Power | 13.5kW |
| 5 | Sheet Thickness | 10~60mm |
| 6 | Conveyor Speed | 18~24m/min |
| 7 | Minimum Width | 50mm |
| 8 | Minimum Length | 70mm |
| 9 | Operating Air Pressure | 0.7MPa |
| 10 | Edge Band Thickness | 0.3~3mm |
| 11 | Glue box heating power | 1.5 kW |
| 12 | Sheet preheating power | 0.3 kW |
| 13 | Glue box transmission power | 0.55 kW |
| 14 | Conveyor belt motor power | 2.2 kW |
| 15 | Trimming motor power | 0.55 kW x 2 (12,000 rpm, 200 Hz) |
| 16 | Fine trimming motor power | 0.75 kW x 2 (18,000 rpm, 300 Hz) |
| 17 | Tracking and profiling motor power | 0.35 kW x 2 (18,000 rpm) |
| 18 | Polishing motor power | 0.18 kW x 2 |
The machine adopts modular split working units, each independently adjustable for different plate thickness and edge tape specifications:
Dual Pre-Milling Unit
Equipped with twin high-frequency milling motors and alloy cutter heads, it removes saw burrs, diagonal cutting marks and uneven edges on raw panels. Flat board surfaces greatly strengthen glue adhesion between edge tape and substrate, avoiding gaps or degumming after long-term use.
Constant-Temperature Spiral Glue Coating Tank
Large-capacity anti-carbonization glue pot with spiral stirring roller ensures uniform hot melt glue coverage. Independent temperature control module prevents glue scorching, maintains consistent viscosity during non-stop production, and delivers firm, bubble-free bonding results.
Dual-End Rough Trimming Station
Single linear guide end cutter trims excess edge tape at front & rear panel ends synchronously. It reduces impact on subsequent fine trimming blades, lowers tool wear, and avoids edge tape cracking during processing thin PVC strips.
High-Speed Fine Trimming Group
Tilt adjustable high-speed cutting motors with wear-resistant alloy saw blades. Operators can quickly adjust cutting depth via handwheel scales, realizing smooth, burr-free upper & lower edge trimming for 0.3–3mm thick edge bands.
Contour Tracking Copying Unit
Dynamic floating copying mechanism eliminates wavy marks left by trimming blades on panel corners. It fits tightly against board contours to smooth uneven transition zones between board and edge tape, creating seamless rounded corner finishes.
Flat Scraping Unit
Precision scraping blades remove residual glue lines and tiny ripples on edge tape surfaces after tracking processing, leveling protruding edges to lay a foundation for mirror polishing.
Double Buffing Polishing Station
Two sets of soft cotton polishing wheels rotate in opposite directions to erase minor scratches, restore edge tape gloss, and unify the texture of board and edge band for high-end furniture visual effects
The whole machine is controlled by Delta PLC + 7-inch touch color screen, with real-time running status display, fault self-diagnosis and one-click parameter memory function. All core pneumatic, transmission and electrical parts adopt internationally well-known brands to stabilize long-hour operation and lower failure frequency:
Ideal for mass production of custom cabinets, wardrobes, wooden doors and straight-edge decorative panels. The fully automatic workflow effectively reduces labor input and upgrades finished product texture. We offer a 1-year spare parts warranty, free remote video technical guidance and on-site factory training for overseas purchasers.
