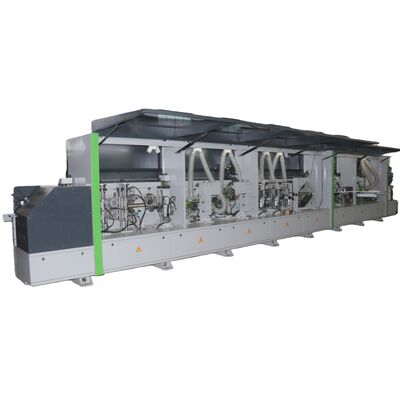

Aluminum Honey-comb Board Automatic Edge Banding Machine With PUR Glue Tank

Aluminum Honey-comb Board Automatic Edge Banding Machine With PUR Glue Tank

Brand Name:	BH
Model Number:	688YJPUR
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Heating Power:

1.8kw

Feeding Motor Power:

3.7kw

Pre-milling Motor Power:

2.2kw*2

Glue Spreading Motor Power:

0.75kw*2

End Trimming Motor Power:

0.5kw*2

Feeding Speed:

10-23m/min

Packaging Details:

9900*1100*1800mm

Highlight:

aluminum honeycomb board edge banding machine

automatic edge banding machine with PUR glue

PUR glue tank edge banding machine

Product Description

 Aluminum Honey-comb Board Automatic Edge Banding Machine With PUR Glue Tank
Product Features of Edge Banding Machine
This heavy-duty, fully automatic edge banding machine is a pinnacle of modern woodworking engineering, designed for high-volume, precision panel processing in industrial manufacturing environments. Built on a rigid, welded steel frame, it integrates a complete, uninterrupted workflow for applying and finishing edge banding materials on panels of various sizes and compositions. The machine features a modular, open-frame design that provides unobstructed access to all critical components, simplifying maintenance and reducing downtime. Its advanced PLC control system, paired with a 10-inch touchscreen HMI, offers intuitive operation, real-time performance monitoring, and storage for up to 200 custom processing profiles. Equipped with safety interlocks, emergency stop mechanisms, and dust extraction ports, it adheres to ISO and CE safety standards, ensuring a secure and compliant working environment.

Parameter

Band tape thickness

0.4-3mm

Band tape width

12-65mm

Workpiece thickness

10-60mm

Workpiece length

>=100mm

Workpiece width

>=50mm

Heating power

1.8kw

Feeding motor power

3.7kw

Pre-milling motor power

2.2kw*2

Glue spreading motor power

0.75kw*2

End trimming motor power

0.5kw*2

Rough trimming motor power

0.75kw*2

Fine trimming motor power

0.75kw*2

Corner rounding motor power

0.5kw*2

Polishing motor power

0.37kw*2

Feeding speed

10-23m/min

Air pressure

0.8Mpa

Net weight

3800kg

Machine size

9800*1000*1700mm

Advantages

Ultra-High Precision & Consistency: The machine utilizes servo-driven linear motion systems and precision-ground guide rails, achieving a positioning accuracy of ±0.01mm. This ensures edge banding materials—including PVC, ABS, melamine, solid wood veneer, and acrylic—are applied with seamless alignment, eliminating gaps, overhangs, and unevenness that degrade product quality.
Industry-Leading Throughput: With a maximum processing speed of 35 meters per minute, this machine outperforms standard models by 25-30%, making it ideal for large-scale furniture production facilities. Its fully automated workflow eliminates manual handling between steps, reducing labor costs and increasing overall production efficiency.
Unmatched Material Versatility: It accommodates edge banding tapes from 0.3mm to 4mm in thickness and 10mm to 65mm in width, as well as panel sizes from 100mm × 100mm to 3200mm × 1500mm. Quick-change tooling and adjustable pressure rollers enable rapid switching between materials, supporting both mass production and custom-order manufacturing.
Low Maintenance & High Durability: Constructed with industrial-grade components, including carbide-tipped trimming knives and high-temperature glue tanks, the machine is built for 24/7 continuous operation. Its modular design allows for component replacement in under 15 minutes, while self-lubricating linear guides and sealed bearings reduce long-term maintenance requirements.
Eco-Friendly & Cost-Effective: The machine incorporates a low-waste glue application system that minimizes adhesive consumption by 15-20%, paired with a high-efficiency dust extraction system that captures over 98% of wood dust and debris. This reduces material waste, lowers operational costs, and ensures compliance with environmental regulations.

Functions

Pre-Milling & Edge Calibrating: A dual-stage pre-milling unit trims panel edges to a uniform, micro-smooth surface, removing saw marks and imperfections to ensure optimal adhesion.
Precision Gluing: A temperature-controlled glue tank (150-230°C) delivers a consistent, thin layer of hot melt adhesive to both the panel and edge tape, with automatic glue level monitoring to prevent interruptions.
End Cutting & Seam Trimming: Servo-driven end cutters trim the edge tape to match the exact panel length, while a seam trimming unit removes excess material for a flush, seamless joint.
Rough & Fine Trimming: High-speed carbide knives remove excess edge material from the top and bottom, with adjustable height settings to accommodate varying panel thicknesses, achieving a precision finish that requires no manual sanding.
Corner Rounding & Profiling: A multi-axis corner rounding unit applies a smooth, uniform radius to panel corners, with adjustable radius settings from 1mm to 5mm for enhanced safety and aesthetics.
Scraping, Buffing & Cleaning: A multi-stage scraping system removes residual adhesive, followed by a dual-head buffing unit that polishes the edge to a professional finish. An integrated air blower system cleans panels and components to maintain consistent quality.
Optional Slotting & Drilling: An integrated slotting module can be added to create grooves for handles or mounting hardware, while a drilling unit supports pre-installation of fixtures, eliminating secondary processing steps.

Applications
This edge banding machine is a critical asset for industries requiring high-quality panel processing, including:

Large-Scale Furniture Manufacturing: Ideal for producing kitchen cabinets, wardrobes, office furniture, and retail displays, where consistent quality and high throughput are essential.
Architectural Millwork: Used for manufacturing custom wall panels, door frames, and decorative partitions in luxury residential and commercial construction projects.
Packaging & Pallet Production: Reinforces and finishes wooden crates, pallets, and specialty packaging solutions, ensuring durability and clean, professional edges.
Interior Design & Fit-Out: Supports the production of custom furniture and fixtures for hotels, restaurants, and corporate offices, where aesthetic precision is a priority.

Shipping & Logistics
The machine is securely packaged in a reinforced, seaworthy wooden crate, with all moving components fixed and electronic parts protected by moisture-resistant wrapping and shock-absorbing foam. We offer flexible shipping options to meet global demand:
Sea Freight: The standard, cost-effective option for international deliveries, with lead times of 25-50 days from our factory to major ports worldwide. We provide FCL and LCL options to suit order volumes.
Door-to-Door Delivery: A comprehensive service that includes customs clearance, inland transportation, and final installation at the customer’s facility, managed by our global logistics partners.

Each shipment includes a detailed installation manual, a full set of spare parts, and a digital operation guide. Our technical support team provides remote assistance for installation and commissioning, with on-site service available upon request to ensure seamless integration into your production line.
