Automatic Best CNC Router Nesting Machine Cabinet Door Making Machine

Name: Automatic Best CNC Router Nesting Machine Cabinet Door Making Machine
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 1830
Availability: InStock

Brand Name:	BH
Model Number:	1830
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Overall Dimensions:

6900*2570*2100mm

Speed:

60m/min

Transmission Type:

X/Y Rack And Pinion; Z Lead Screw

Table Structure:

Partitioned Vacuum Adsorption Table

Spindle Power:

9kw

Packaging Details:

7000*2670*2200mm

Highlight:

CNC router nesting machine for cabinets

automatic CNC door making machine

cabinet door CNC nesting machine

Product Description

Automatic Best CNC Router Nesting Machine Cabinet Door Making Machine

Product Introduction

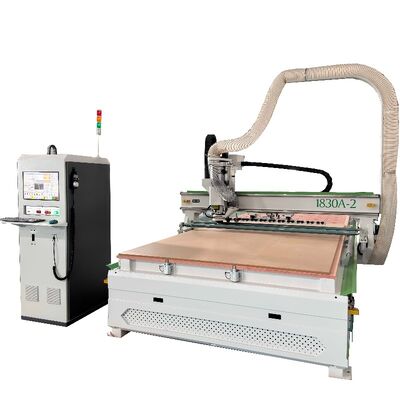

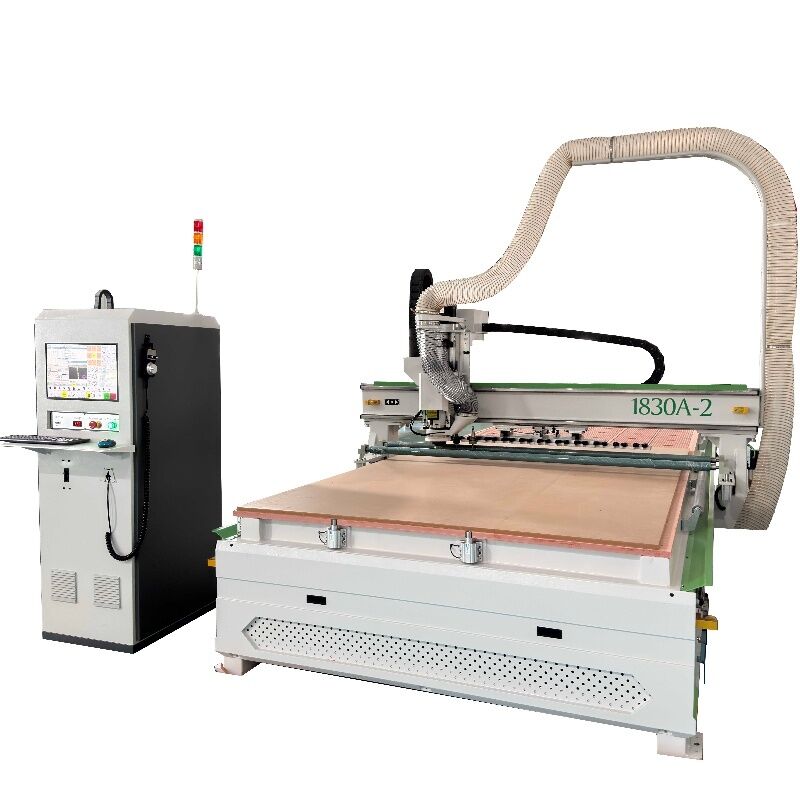

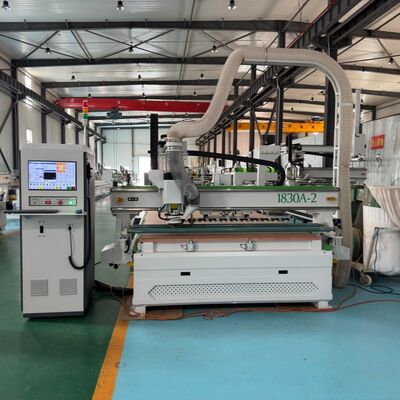

The 1830A-2 Dual-Station Linear Tool Changer Machining Center is engineered for long-term stability and reliability, making it a trusted choice for woodworking businesses that prioritize consistent performance and minimal downtime. Every component of the machine is selected for durability, and the manufacturing process adheres to strict quality control standards—ensuring that the machine operates seamlessly even in harsh workshop environments.

The machine’s structural stability begins with its integrally welded steel truss frame. After welding, the frame undergoes vibration aging to eliminate internal stresses, preventing deformation over time. The gantry beams and side arms are tempered (annealed) to enhance hardness and toughness, while the entire bed and gantry are precision-machined using a 5-face machining center. This single-setup machining ensures that the XYZ axes are perfectly aligned, reducing backlash and maintaining positioning accuracy for years.

Parameter Specification

Component	Specification
Overall dimensions	690025702100mm
Sheet processing dimensions	3050183018mm
Running Speed	60m/min
Transmission type	X/Y rack and pinion; Z lead screw
Table structure	Partitioned vacuum adsorption table
Spindle power	9kw
Spindle speed	18000~24000r/min
Maximum operating speed	20m/min
Operating voltage	AC380/3PH/50HZ

Product Advantages

Long-Term Structural Stability: The vibration-aged bed and tempered gantry beams prevent deformation, even after years of heavy use. The 5-face machining center ensures that the XYZ axes remain aligned, maintaining positioning accuracy and cutting quality over time.
Reliable Component Performance: High-quality components—such as the LNC control system, CC spindle, and Shimpo reducers—are designed for extended service life. This reduces the frequency of breakdowns and ensures that the machine operates consistently.
Minimal Downtime for Maintenance: The centralized lubrication system automates maintenance tasks, reducing the need for manual intervention. The machine’s modular design allows for easy access to components, making repairs and replacements quick and efficient. For example, the electrical system’s solenoid valves are simpliy fying troubleshooting and maintenance.
Widely Available Spare Parts: Delixi electrical parts, Hengtong drag chain cables, and other components are widely available in most regions. This ensures that replacements can be sourced quickly, minimizing downtime in the event of a component failure.
Comprehensive After-Sales Support: We offer a one-year warranty covering all parts and labor, with extended warranty options available. Our technical support team provides prompt assistance, with a response time of less than 48 hours for most issues. On-site service is available for complex repairs, ensuring that the machine is back in operation as soon as possible.

Product Functions

Stable Cutting Performance: The 9KW spindle, with its high torque and wide speed range, delivers consistent cutting performance even for tough materials. The spindle’s cooling system prevents overheating, ensuring that it operates at peak efficiency for extended periods.
Precision Positioning: The XYZ axis drives, with their servo motors and Shimpo reducers, provide smooth, accurate motion. The Taiwanese steel guide rails and P&C rack-and-pinion drives further enhance positioning accuracy, ensuring that cuts are precise and consistent.
Reliable Tool Changing: The 12-tool linear magazine uses patent-designed tool holders with rear springs to secure tools firmly. The magazine’s mechanism is designed for minimal wear, ensuring that tool changes are smooth and reliable.
Secure Workpiece Clamping: The zoned vacuum adsorption table, paired with an 11KW vacuum pump, provides strong and uniform suction. This ensures that workpieces remain securely clamped during cutting, reducing the risk of movement and defective parts.
Easy Maintenance: The machine’s modular design allows for easy access to components. The centralized lubrication system’s reservoir is easy to refill, and the electrical system’s solenoid valves are for quick troubleshooting. The dust collection system’s filters are easy to replace, ensuring that the machine remains clean and efficient.
Safety Features: The machine is equipped with emergency stop buttons, safety interlocks, and warning indicators to protect operators. The dust collection system and air-blowing device ensure a clean working environment, reducing the risk of respiratory issues.

Equipment Configuration

Control System: Taiwan Baoyuan control system is stable, fast-responding, and features a user-friendly interface that makes operation simple and intuitive.

Zoned vacuum adsorption table The patented design features partitioned vacuum adsorption and screw-fixed tabletop for stronger suction and to prevent small boards from slipping out of place.

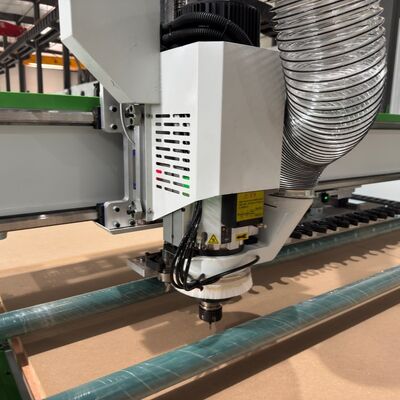

Spindle: Spindle: CC/9KW high-power tool-changing spindle, 18000-24000r/min, with high cutting torque, fast speed, and easy movement.

Linear 12-tool magazine. Meets the needs of customers who want to use it as both a cabinet and a door, and currently boasts the largest tool capacity on the market; it features a patented tool clip design, a rear spring design, and high-quality PE material.

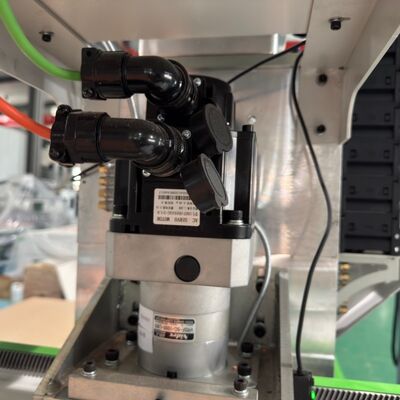

XYZ drive motors: Customized 1.5KW servo motor; driver is a servo drive (matched to the motor above).

Patented dust collection hood. The dust collection effect is excellent, effectively removing dust from even the cutting grooves. Alternatively, a four-sided blowing dust cover can be selected for dust-free material handling.

Reducer: The Japanese Shinpo gear reducer adopts a helical planetary structure design, which results in higher precision and a longer service life.

Steel crossbeam. Both the bed and the crossbeam are hardened and sandblasted, and then machined using a CNC five-sided machining center to ensure the strength of the gantry and the precision of machining during heavy cutting.

Guide Rails: Taiwanese steel strip (25MM) offers higher precision and greater hardness.

11KW vacuum pump. High-power adsorption ensures the small plate does not shift.

High precision, 1.5 module P &C rack and pinion transmission. High speed, high precision, and strong wear resistance of materials

Drag chain:The cable chain uses an imported layered and separate wiring design, with each wire individually separated for easy troubleshooting
