Professional Automatic Edge Banding Machine with Encoder-Driven Coordination, Dual-Cutter Pre-Milling, and Uniform Hot-Melt Spreading for Woodworking

Professional Automatic Edge Banding Machine with Encoder-Driven Coordination, Dual-Cutter Pre-Milling, and Uniform Hot-Melt Spreading for Woodworking

Brand Name: BH
Model Number: 388Y
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 2000Sets/Year
Detail Information
Place of Origin:
Qingdao China
Certification:
CE
Voltage:
380 V 50Hz 3Phase (Optional)
Pressure:
0.7mpa
Weight:
1500kg
Power:
13.5KW
Panel Width:
50mm
Panel Length:
70mm
Packaging Details:
Wooden crate packaging
Product Description
Professional Edge Banding Machine Automatic Woodworking Machinery for Furniture
Product Overview

The BHM388Y Edge Banding Machine represents a complete edge finishing solution for modern furniture workshops demanding speed, precision, and durability. This automatic straight-line edge bander measures 5000mm in length, 750mm in width, and 1500mm in height, with a net weight of 1500kg that ensures operational stability.

Its variable-speed conveyor belt runs at 18-24 meters per minute, handling board thicknesses between 10mm and 60mm while accepting edge strips from 0.3mm up to 3mm thick. The machine accepts workpieces as narrow as 50mm and as short as 70mm. Powered by 13.5kW total output and requiring 0.7MPa compressed air, the BHM388Y incorporates an encoder-driven control system alongside PLC-based time-logic programming, enabling seamless coordination across all processing stations—from pre-milling through final polishing.

Technical Specifications
Overall Dimensions 5000 × 750 × 1500 mm
Machine Weight 1500 kg
Working Voltage 380V / 50Hz
Total Power 13.5 kW
Conveyor Speed 18 ~ 24 m/min
Minimum Board Size 50 mm (width) × 70 mm (length)
Product Advantages
  • Encoder-Driven Coordination: Industrial encoder governs every mechanical action, delivering fast response times and minimal breakdown frequency.
  • Time-Logic PLC Interface: Built-in programmable controller runs on straightforward time-control principles, making operation intuitive while boosting both safety and repeatability.
  • Dual-Cutter Pre-Milling: Two milling heads cleanly remove surface defects like grain lines, fuzzy burrs, and angled edges, creating an ideal foundation for strong adhesive bonding.
  • Uniform Hot-Melt Spreading: Spiral-configured glue pot melts and distributes adhesive evenly across the entire seam, eliminating dry zones and excess buildup.
  • Single-Guide Rail End Trimming: End-cutting assembly rides on a stable mono-rail system, slicing off surplus banding flush with both board ends for a neat appearance.
  • Two-Stage Trimming System: Rough trim stage protects delicate wood veneers from cracking during sealing; fine trim stage produces silky-smooth, burr-free edges.
  • Progressive Scraping Process: Removes wavy tool marks and applies secondary smoothing for clean, ripple-free edge surfaces.
  • Final Polishing Touch: Buffing wheel adds a glossy, professionally finished surface that resists dirt and enhances tactile quality.
Product Applications
  • Large-Volume Furniture Factories: Handles continuous production runs of bedroom sets, kitchen cabinetry, and shelving units
  • Veneer-Based Product Lines: Rough trimming feature protects natural wood veneers that tend to chip under standard cutters
  • Acrylic & PVC Edge Processing: Dual trimming stages efficiently manage synthetic edge materials
  • Custom Millwork Operations: Produces showcase-ready edges on built-in cabinets and architectural moldings
  • Display & Fixture Fabrication: Creates smooth, attractive edges on retail displays and exhibition booths
  • Door & Panel Manufacturing: Suitable for sealing interior doors and decorative wall cladding
  • Small-Batch Specialty Shops: Accommodates frequent material changes with minimal setup time

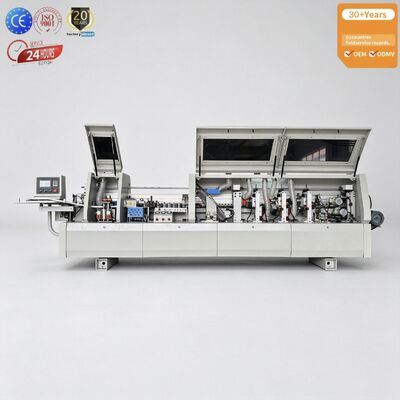

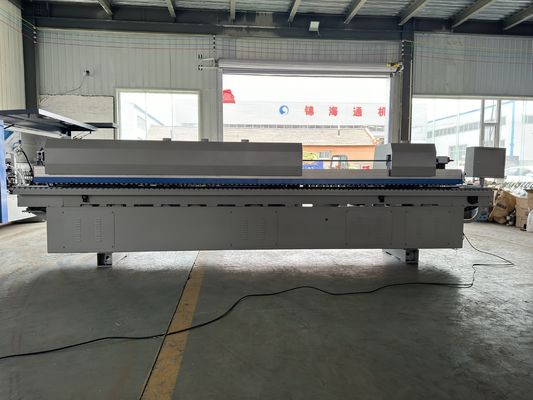

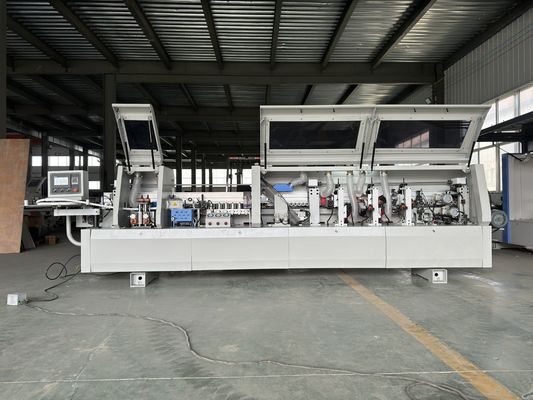

Product Images
Frequently Asked Questions
Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
How does your factory do regarding quality control?
All the products will be 100% checked before shipment.
What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
Is it possible to load mixed products in one container?
Yes, it's available.
