BHM368F High-Speed Automatic Edge Banding Machine

Name: BHM368F High-Speed Automatic Edge Banding Machine
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 368F
Availability: InStock

Brand Name:	BH
Model Number:	368F
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Size:

3500X750X1500mm

Thickness:

10-60mm

Speed:

18~24m/min

Presssure:

0.6-0.8mpa

Weight:

1050kg

Weight After Packaging:

1150kg

Packaging Details:

3600X850X1600mm

Highlight:

high-speed automatic edge banding machine

BHM368F edge banding machine

automatic edge banding machine with warranty

Product Description

BHM368F High-Speed Automatic Edge Banding Machine

Product Introduction

Elevate your production line with the BHM368F, a state-of-the-art automatic edge bander engineered for high-volume efficiency. This machine is the ultimate solution for furniture manufacturers seeking flawless finishes on wood panels, PVC, and melamine surfaces. By integrating intelligent PLC control with heavy-duty German engineering principles, the BHM368F delivers consistent, high-speed processing without compromising on quality.

Whether you are outfitting a new factory or upgrading existing equipment, this machine is designed to handle the rigorous demands of 24/7 industrial operation. It combines speed, accuracy, and versatility to streamline your workflow and reduce waste.

Key Technical Specifications:

Lightning-Fast Production Speed
With a conveying speed of 18-24 meters per minute, this machine is built for high throughput. The sensitive encoder system synchronizes all movements, allowing for rapid processing without sacrificing accuracy, even on complex profiles.

Intelligent PLC Control

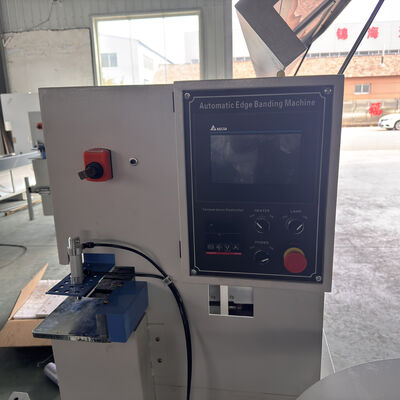

Say goodbye to complex manual adjustments. The BHM368F utilizes a Programmable Logic Controller (PLC) microcomputer system. This interface allows operators to set parameters with a few clicks, reducing setup time and minimizing human error.

Heavy-Duty Industrial Build
Weighing over 1000kg, the chassis is constructed from reinforced steel and cast iron. This massive weight acts as a vibration damper, ensuring stability during high-speed operations and contributing to the machine's long service life.

Versatile Material Handling
From delicate veneers to thick ABS and PVC strips (0.3mm - 3mm), this machine adapts to various materials. It handles panels ranging from thin laminates to thick industrial boards (10-60mm).

Feature	Specification
Model	BHM368F
Dimensions (LxWxH)	3500 x 750 x 1500 mm
Weight	1050 kg (Net)
Power Consumption	7 kW
Voltage	380V / 50Hz (Customizable)
Operating Speed	18 - 24 m/min
Panel Thickness Range	10 - 60 mm
Min. Working Size	50 x 70 mm

Core Features & Functional Units:

The BHM368F is not just a machine; it is a complete edge finishing system. It automates the entire workflow through eight distinct processing stages, ensuring every panel leaves the line ready for final assembly:

1. High-Adhesion Gluing System
The heart of the machine features a 0.7 MPa high-pressure hot melt glue system. The specialized spiral design of the glue pot ensures even heat distribution and uniform adhesive application, creating a bond that is both durable and invisible.

2. High-Speed Edge Trimming
Using high-precision alloy cutters, this stage removes excess material from the top and bottom edges. The motorized unit operates at high RPM to leave a clean, burr-free surface, perfectly flush with the panel.

3. Scrape & Ripple Removal
To achieve a glass-smooth finish, a dedicated scraping station eliminates any micro-ripples left by the trimmers. This stage is crucial for high-gloss finishes where imperfections are highly visible.

4. Final Buffing & Polishing
The process concludes with a high-speed buffing unit. This polishes the sealed edge to a mirror finish, enhancing the aesthetic quality of the panel and ensuring it is ready for immediate inspection or packaging.

Why Choose This Machine?

Reliability: Built with high-purity copper motors for thermal efficiency.
Quality: Achieve invisible seams and mirror-like finishes.
Support: Backed by a professional manufacturer with global shipping.

Note: This machine is designed for industrial environments. For safety, ensure proper grounding and air pressure supply (0.6-0.8 MPa) before operation.

Recommended Configurations and Purchase Recommendations

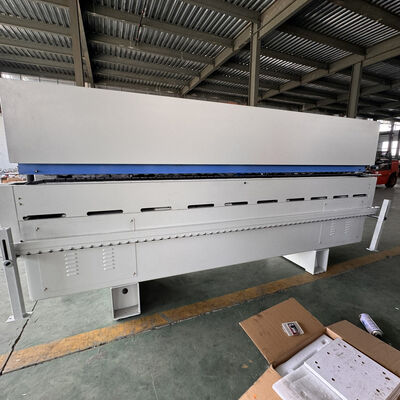

BHM368F High-Speed Automatic Edge Banding Machine 0

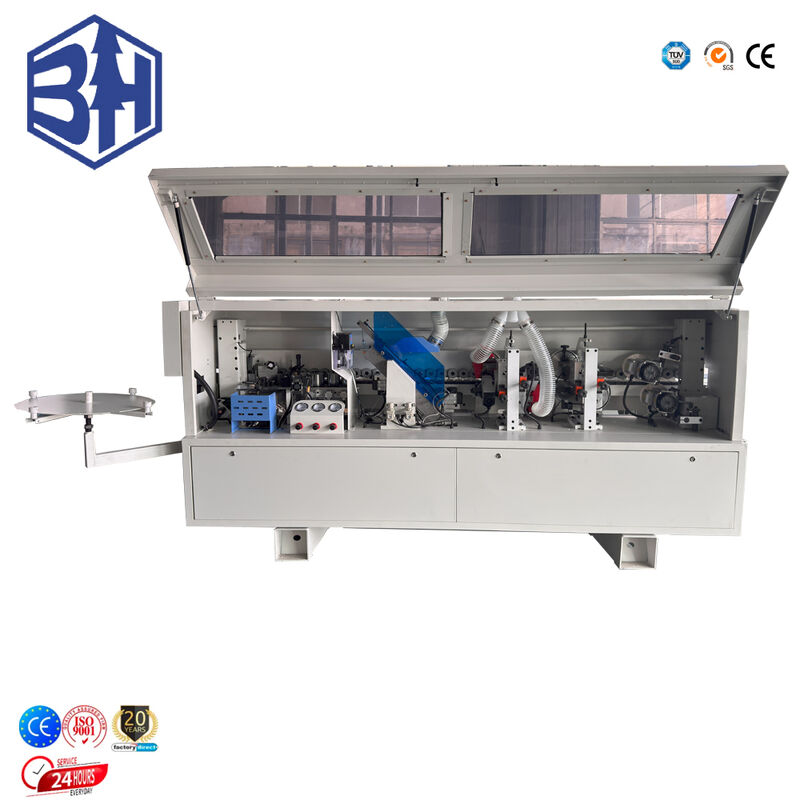

BHM368F High-Speed Automatic Edge Banding Machine 1

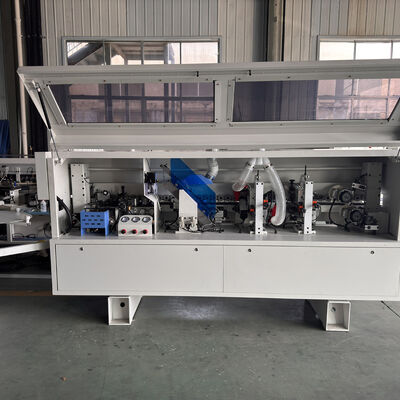

BHM368F High-Speed Automatic Edge Banding Machine 2

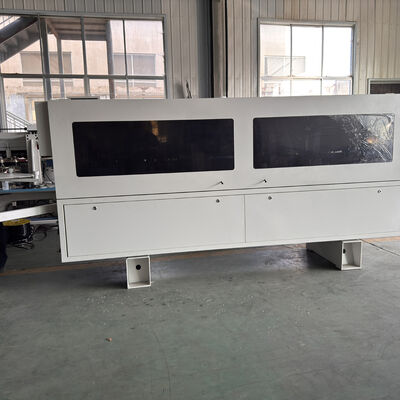

BHM368F High-Speed Automatic Edge Banding Machine 3

BHM368F High-Speed Automatic Edge Banding Machine 4
