| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

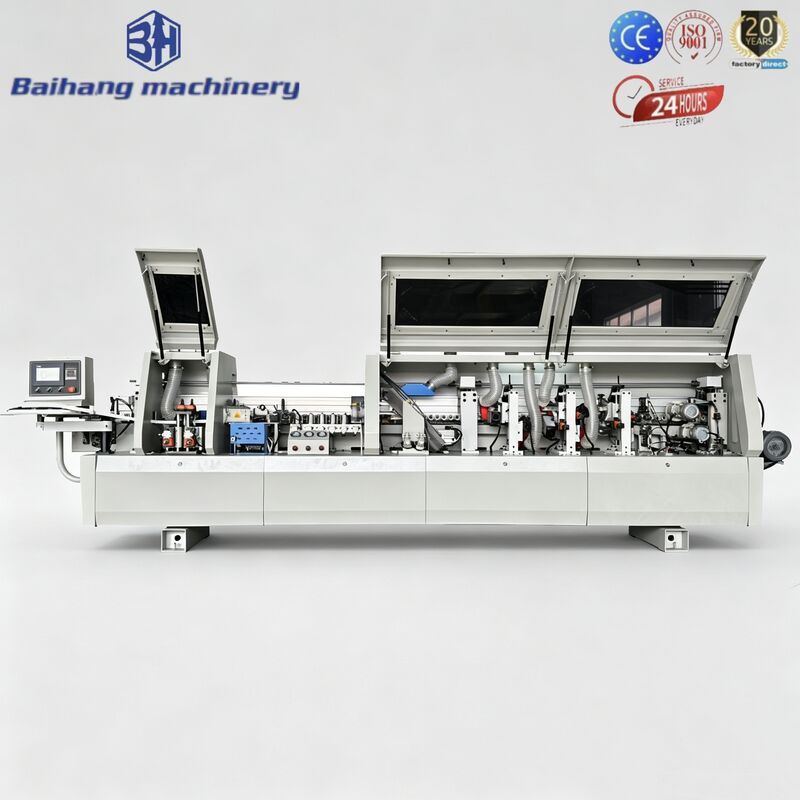

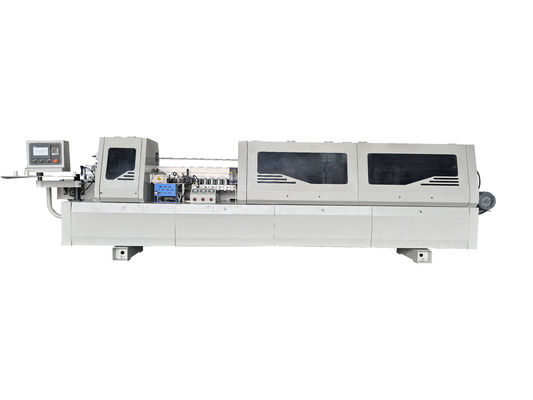

The BHM388Y Edge Banding Machine is an automated straight-line edging system engineered for furniture manufacturers seeking high throughput and superior edge quality. The machine's footprint measures 5000mm deep, 750mm wide, and 1500mm tall, with a gross mass of 1500kg. Its variable-speed chain track operates within a range of 18 to 24 meters per minute, processing panel stock from 10mm up to 60mm in thickness while accommodating edge strips varying between 0.3mm and 3mm. The minimum workpiece dimensions accepted are 50mm across and 70mm along the feed direction. Drawing 13.5kW of total power and requiring shop air at 0.7MPa, the unit uses an encoder-based motion controller alongside a time-logic PLC to orchestrate a nine-station operational sequence: pre-milling, glue coating, end trimming, rough shaping, fine shaping, primary scraping, flat scraping, and machine.
| Overall Dimensions | 5000 × 750 × 1500 mm |
| Machine Weight | 1500 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 13.5 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |
Closed-Loop Motion Governance: An encoder continuously tracks positional data across all moving assemblies, enabling rapid command execution and statistically low failure occurrences.
Simplified Timing-Based Programming: The onboard PLC relies on duration-based logic rather than complex coding, allowing shop technicians to adjust parameters without specialized training.
Rotary Pre-Conditioning Heads: Twin milling cutters strip away loose fibers, char marks, and angular irregularities from panel edges before adhesive application, creating an optimally flat bonding substrate.
Auger-Style Melt Distribution: The heated reservoir contains a rotating spiral mechanism that forces molten adhesive outward evenly, eliminating dry streaks and reducing material waste.
Linear-Guided Flush Severing: A single-rail carriage assembly drives the cutoff knives, precisely shearing leading and trailing banding overhang flush with the panel extremities.
Cascading Reduction Approach :
First-Stage Reduction (Rough): Mitigates fracture risk when applying fragile wood veneers; also functions as an initial contouring pass for rigid synthetics, lowering stress on subsequent tools.
Second-Stage Reduction (Fine): A high-rpm bevel drive with an indexed tungsten-alloy disc produces a ripple-free profile with consistently smooth surface texture.
Gradual Refinement Sequence :
Initial Wipe (Scraping): Eliminates corrugated tooling tracks from the reduction stages, delivering clean upper and lower edge faces without undulations.
Secondary Wipe (Flat Scraping): Applies a light follow-up cut after the initial wipe, enhancing smoothness and geometric consistency.
Rotary Surface Burnisher: A compliant polishing wheel glides over the sealed edge, producing a luster finish that resists dust adhesion and feels sleek to the touch.
Residential Furniture Production: Provides reliable edge finishing for bedroom sets, dining tables, children's furniture, and storage cabinets.
Thin-Veneer Operations: The rough reduction feature proves essential for shops applying delicate decorative veneers that typically chip under standard profilers.
Thermoplastic Edge Processing: Rough and fine stages together handle polyvinyl chloride, acrylic, and ABS banding efficiently while preserving cutting tool longevity.
Contract Office Furnishings: Seals edges on workstation partitions, modular desking systems, filing units, and reception counters.
Store Fixture and Display Building: Creates clean, presentable edges on retail shelving, kiosk components, and product demonstration tables.
Interior Door and Wall Panel Manufacturing: Applies wear-resistant edge seals to passage doors, bifold units, and decorative wall cladding panels.
Quick-Turn Job Shops: Supports frequent material changes and small batch sizes with straightforward changeover procedures between runs.

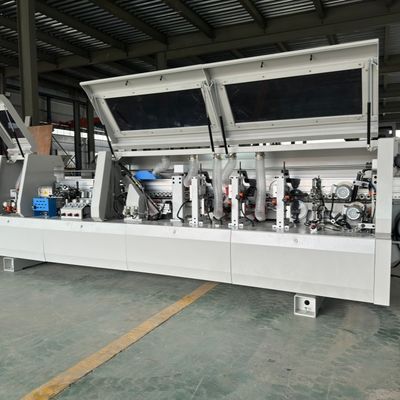

Image details
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
