Full Automatic Edge Banding Machine with 18-24 m/min Conveyor Speed 13.5KW Power for 50mm x 70mm Minimum Board Size

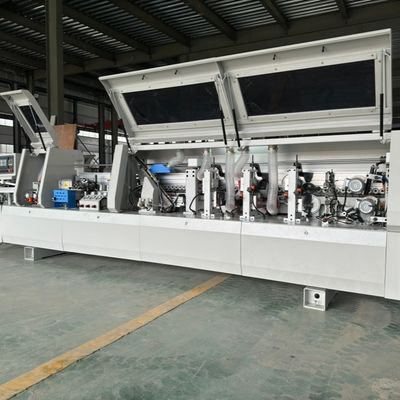

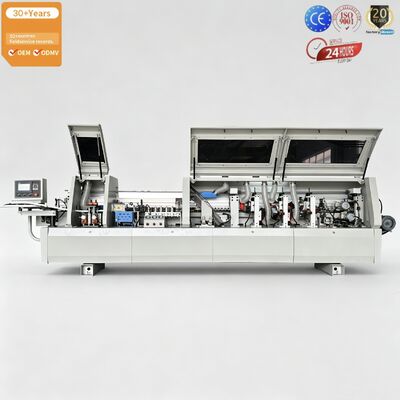

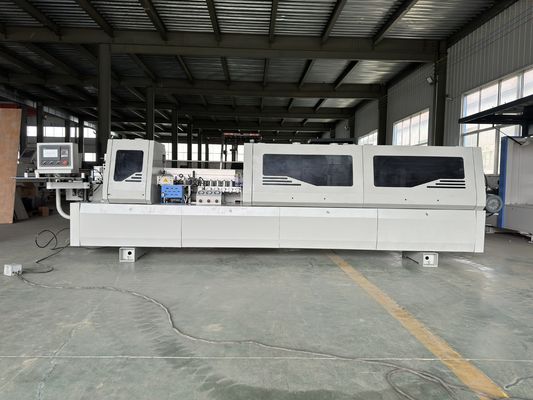

The BHM388Y Edge Banding Machine is a full-featured automatic edge sealer built for mid-to-large-scale woodworking operations that demand consistent output quality and operational reliability. This unit occupies a floor space of 5000×750×1500mm and carries a shipping weight of 1500kg, reflecting its heavy-gauge build.

The variable-speed feed system operates between 18 and 24 meters per minute, accommodating workpieces measuring 10-60mm in thickness while using edging strips from 0.3mm to 3mm. The smallest board it can handle is 50mm wide by 70mm long.

With a total electrical draw of 13.5kW and an air supply requirement of 0.7MPa, the machine runs on standard 380V/50Hz three-phase power. A combination of encoder-based motion control and PLC-driven timing logic manages the entire workflow, covering pre-milling, adhesive application, end trimming, coarse and fine profiling, dual scraping stages, and a final polishing pass.

• Motion Feedback via Encoder: High-resolution encoder monitors and directs all mechanical sequences, offering quick reaction times and low incidence of operational faults.
• Straightforward PLC Logic: Panel-mounted controller uses simple time-based programming, reducing training time while maintaining consistent cycle-to-cycle accuracy.
• Two-Cutter Edge Preparation: Pair of rotating milling heads cleans board side surfaces by stripping away loose fibers, burn marks, and off-angle cuts before adhesive application.
• Even Adhesive Distribution: Heated glue vessel with internal auger-style mechanism spreads melted bonding agent uniformly across entire contact area.
• Rail-Guided Flush Cutting: Linear-guide-based end-cutting station removes overhanging banding material from both leading and trailing board ends.
• Successive Profiling Stages:
  • Initial Profiling (Coarse): Shields thin wood veneers from edge chipping; serves as preliminary shaping step for synthetic edging.
  • Final Profiling (Fine): Bevel-oriented, high-revolution motor with adjustable solid-alloy disc produces scratch-free, uniformly contoured edge surface.
• Sequential Smoothing Operations:
  • Primary Scraper: Eradicates undulating cutter marks from profiling stages, yielding flat, ripple-free top and bottom edge zones.
  • Secondary Flat Scraper: Delivers gentle follow-up pass that polishes edge further, eliminating remaining micro-irregularities.
• Surface Brightening Unit: Soft-rotary buffing wheel provides final sheen to sealed edge, improving visual appeal and creating smooth-to-the-touch finish.

• Case Goods Manufacturing: Seals exposed edges on bookcases, entertainment centers, nightstands, and chests of drawers with professional-grade results.
• Veneered Panel Processing: Coarse profiling station makes this machine ideal for factories applying real wood veneers prone to splintering.
• Synthetic Edge Banding Lines: Rough and fine trimming stages efficiently handle acrylic, ABS, and polyvinyl chloride strips, extending cutter life.
• Commercial Casework Production: Produces durable, clean-finished edges for office cubicles, reception desks, laboratory cabinetry, and retail display cases.
• Architectural Woodwork Contractors: Delivers precision edge finishing for custom reception areas, conference room paneling, and high-end residential built-ins.
• Door and Partition Fabricators: Applies moisture-sealing edges to hollow-core doors, closet sliders, and room divider panels.
• Job Shop Environments: Offers flexibility to switch between different board types, edge materials, and thicknesses without lengthy recalibration procedures.
